An Audi A3 8V Haldex service means draining and replacing the oil in the rear coupling, cleaning the pump strainer, refilling with the correct Haldex fluid and then priming the pump so the rear axle engages properly. The 8V quattro cars (A3, S3 and RS3) use the fifth-generation unit, and it is a small, inexpensive job compared with what neglecting it can lead to. This guide covers what the service involves, what to buy, how to prime the pump, and which symptoms point to a service and which point to something bigger.
TL;DR
- The 8V A3, S3 and RS3 quattro use a Gen 5 Haldex coupling with an integrated control module and pump, so the service is oil plus a strainer clean, not a separate cartridge filter swap.
- Do the oil service on a schedule rather than waiting for a fault. Our Audi Haldex service guide covers intervals and costs in detail.
- After refilling, prime the pump with VCDS. Many owners think a new pump is needed when the pump simply has not been primed.
- A no-communication fault in the all-wheel-drive module is a different problem from tired oil, and needs diagnosis before you buy parts.
- Buy by generation and by vehicle, not by model name alone, so the kit matches your coupling.
Table of Contents
- What the Haldex does on an 8V A3 and S3
- How often an 8V needs a Haldex service
- What you need for the job
- Step by step: servicing the Haldex on an A3 or S3 8V
- Priming the Gen 5 pump with VCDS
- Symptoms: oil service or something bigger?
- DIY or specialist?
- Best Q3 Haldex kit and other models
- Where the parts come from
- Perspective: what we see most often
- Get the right kit for your 8V
- FAQ
- Sources
What the Haldex does on an 8V A3 and S3
The 8V is built on the transverse MQB platform. The quattro versions do not have a propshaft driven by a centre differential like a longitudinal Audi. Instead, the front wheels do the driving most of the time, and an electronically controlled multi-plate clutch at the rear axle, the Haldex coupling, sends torque back when the car needs it.
On the fifth generation, the control module and the electro-hydraulic pump are built into the coupling. The control module takes live data from the ABS, engine and transmission systems over the CAN bus and decides how much torque goes to the rear, as ECU specialists describe the Gen 5 system.
That matters for servicing for two reasons:
- The oil is the working fluid for the clutch pack. It ages, collects clutch material and fine debris, and the pump pulls it through a strainer.
- The pump and control electronics are in one unit, so how you treat it during a service (power, priming, no interrupted cycles) affects how it behaves afterwards.
If you want to confirm your car is Gen 5 and not an earlier unit, the model and generation checker in our service guide walks through it. As a rule, the 8V A3, S3 and RS3 quattro are Gen 5, as are the Mk7 Golf R and similar MQB models.
How often an 8V needs a Haldex service
Audi does not publish a single interval that every owner agrees with, and the answer depends on how the car is driven. A daily commuter in a mild climate is a different case from a tuned S3 that sees launches, track days or winter driving in snow.
What we see in practice:
- Stock A3 or S3, normal use: a regular oil service well before the car passes the point where the coupling is worn. Our own pages on the Haldex coupling service interval set out the mileage bands and the exact parts for VW and Audi.
- Tuned cars, towing, snow, or hard driving: shorten the interval. More torque and more slip mean the fluid works harder.
- Bought used with no history: assume it has never been done. Service it before you rely on it, and see what comes out. Black, gritty or burnt-smelling oil tells you a lot.
The cost side is covered in the same intervals and costs section. Dealers and independent specialists price this differently, so get a quote that states whether the pump strainer is cleaned and whether the pump is primed afterwards. Those two items separate a proper service from a quick drain and fill.
What you need for the job

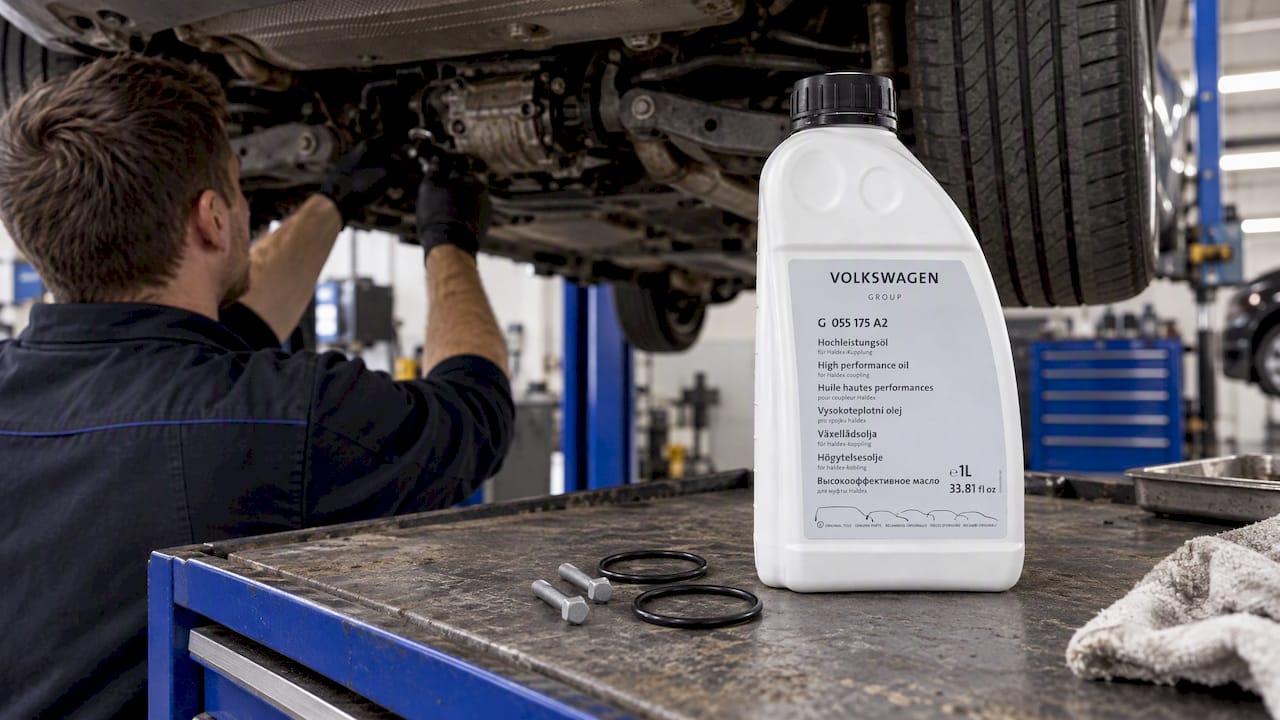

A Gen 5 service on an 8V needs a short list of items:
| Item | Why it matters |
|---|---|
| Correct Haldex oil | The clutch is designed around a specific fluid. Gear oil is not a substitute. |
| New drain and fill plug seals | Reusing crush washers invites weeping and a slow loss of fluid. |
| Strainer/pump inspection and clean | Gen 5 has no separate cartridge filter. The strainer on the pump is the filter. |
| Fill pump or syringe and tube | The fill point is awkward and the fluid is thin enough to spill. |
| Hex bits and a torque wrench | The plugs need to be tightened to specification. |
| VCDS or a compatible diagnostic tool | Needed to prime the pump after refilling. |
A complete kit saves you matching parts one at a time, and it removes the guesswork about oil. The kits that specialists sell for this job typically include the oil and the seals, and some include the tools. If you are refilling rather than using a prepared kit, always check the oil specification against your coupling generation before you open a bottle.
Step by step: servicing the Haldex on an A3 or S3 8V
This is the outline. Follow the factory procedure or a reliable workshop manual for torque figures and any model-specific details, and do not work under a car that is not properly supported on stands or a lift.
- Lift and support the car securely. The coupling sits at the rear differential, and you need level access to both plugs.
- Warm the car lightly. A short drive makes the oil drain more completely. Let it cool enough to handle safely.
- Remove the fill plug first. Do this before the drain plug, so you know you can open the system before you empty it.
- Drain the old oil. Catch it and look at it. Note the colour, any metallic or clutch debris and any burnt smell.
- Remove the pump and clean the strainer. The pump holds fluid and the strainer collects debris. Our guide recommends this step when you service the coupling, and so do many Audi specialists. Our guide to the service steps goes through it in more detail.
- Refit the pump and drain plug with a new seal, tightened to specification.
- Refill with the correct Haldex oil through the fill point, using a syringe or pump and tube, until it reaches the correct level.
- Refit the fill plug with a new seal.
- Prime the pump with VCDS (next section).
- Test drive, then recheck for leaks and make sure the rear axle is engaging.
A note on the debate: some owners argue the factory procedure does not call for removing the pump during a simple oil change, while others insist on the pump and strainer clean every time. Forum threads such as this Audizine discussion on priming and servicing show how divided owners are on details. Our view is simple: if you are already under the car and the pump is accessible, cleaning the strainer costs very little extra time and tells you what is circulating inside the coupling.
Priming the Gen 5 pump with VCDS
This is the step that catches people out. After a service, some cars seem to have no rear traction, and owners assume the pump is dead. In many cases the pump has simply not been primed after the fluid was drained and refilled.
Owners on the Audi S3 forum describe the VCDS priming routine: warm the engine and the Haldex, leave the engine running, open the all-wheel-drive control module (address 22), go to Basic Settings and run the pump motor routine, then listen for the rear pump to run. They stress letting it finish on its own, without interrupting it. Check the exact procedure for your tool and software version before you start, because menus differ.
We have written a dedicated walkthrough for technicians: prime Gen 4 and Gen 5 Haldex pumps with VCDS. If you run a workshop, make priming a fixed line on your job sheet. It prevents comebacks.
If the pump does not run at all during the routine, or the module will not communicate, stop and diagnose. Do not keep cycling it.
Symptoms: oil service or something bigger?
An S3 AWD fault message or a car that feels front-driven in the wet does not always mean the same thing. Here is how we sort the common cases.
| What you notice | Likely area | First step |
|---|---|---|
| Rear axle seems to do nothing after a recent service | Pump not primed, low fill level | Prime with VCDS, recheck level |
| Whining or buzzing from the rear under load | Pump or strainer, tired oil | Drain, inspect, clean strainer |
| Jerky or binding on tight turns at low speed | Oil condition, clutch wear | Check oil, then have the coupling assessed |
| AWD warning light with a stored communication fault | Control module | Read fault codes before buying anything |
| Oil weeping at the coupling | Seals or plugs | Replace seals, recheck |
The skipped service symptoms section of our guide lists what usually shows up on cars that have never had the oil changed.
When it is the control module
The Gen 5 control module is a known weak point on VAG cars. The ECU specialists mention that a typical stored code is 01324, control module for all-wheel-drive (J492), no signal or communication, and that it is commonly seen on A3, Q3 and S3 quattro models. That is not an oil problem, and a service alone will not clear it.
Owners on forums also mention the pump as an item to watch on the 2015 S3, noting that Haldex pump failures come up in S3 reliability threads. Forum posts are anecdotes, not failure statistics, but they match what we hear from workshops: check the pump and the control module before replacing the whole coupling.
If diagnosis points to the module, the genuine part is the OEM 0CQ907554J Haldex control unit for Generation 5. Confirm the part number against your coupling and VIN before ordering, because VAG cars from the same period carry different variants.
DIY or specialist?
Both are reasonable, and the choice depends on tools and confidence.
DIY suits you if:
- You have stands or a lift, a torque wrench and the right hex bits.
- You have VCDS or a compatible tool for priming.
- You are comfortable reading a fault code and stopping when something looks wrong.
A specialist suits you if:
- The car is under a warranty or a service plan that requires documented work.
- You see metal debris, a burnt smell or a fault code.
- You do not have a way to prime the pump.
We set out the trade-offs in DIY or specialist in our service guide. If you run a repair shop or look after a fleet of AWD vehicles, buying kits in quantity is cheaper per job and keeps the parts consistent.
Best Q3 Haldex kit and other models
Readers often ask which kit fits the Q3. The short answer: the 8U Q3 quattro and the 8V A3 share the Gen 5 principle, but fitment depends on the exact year, engine and coupling part number. Do not choose by model name. Choose by generation, then confirm with your VIN. Our article on the Audi Q5 Haldex service shows how to check a VIN before you buy, and the same logic applies to the Q3, the TT and the Golf R.
Where the parts come from
The cheapest fluid or an unbranded kit is a poor place to save money on a clutch pack that costs far more than the service. We supply OEM-grade parts, and the products are selectable by brand and by Haldex generation, with detailed product information, so you can match the kit to the coupling. Our notes on where correct OEM Haldex parts come from explain what to look for.
Perspective: what we see most often
We sell Haldex parts all day, so we hear what goes wrong. The pattern is consistent. Most of the problems people bring us are not a dead coupling. They are a skipped service, an unprimed pump after a refill, or a diagnostic code that was never read before parts were ordered.
Our advice is plain. Service the oil on a schedule, clean the strainer while the pump is out, prime with VCDS every time and read the codes before you replace anything. Buy by generation and VIN. And if the symptoms point at the control module, treat it as an electronic fault, not an oil fault. A cheap bottle of oil never fixed a communication fault, and a new module never fixed a coupling full of debris.
— Mindaugas
Get the right kit for your 8V
We stock Haldex pumps, oils, filters, service kits, ECUs and control units for Audi, VW, Škoda, Seat, Ford, Land Rover, Volvo, Opel, Saab and Vauxhall, with bulk and B2B orders available for workshops and fleets. Orders over £150 ship free. For a Gen 5 job, a good starting point is the BorgWarner 0CQ598305 Haldex seal repair kit with oil, which suits Audi, VW, Škoda and Seat cars with the fifth-generation coupling. You can also browse everything on haldexparts.co.uk.
FAQ
How often should I change the Haldex fluid on an A3 8V?
On a regular schedule rather than at the first symptom. The right interval depends on use: tuned, towed or snow-driven cars need it sooner. Our interval and cost guide gives the bands we recommend.
How do I know if my Haldex is bad?
The signs are no rear drive after a service, noise from the rear under load, binding on tight turns, or an AWD warning with a stored communication fault. Read the codes first. A pump that needs priming and a failed control module look similar from the driver’s seat but need different fixes.
Does the Gen 5 Haldex have a separate filter?
No. The pump has a strainer, and that is the part you inspect and clean. Specialists therefore treat pump removal and strainer cleaning as part of a thorough service, though owners disagree on whether a basic oil change must include it.
Can I service the Haldex myself?
Yes, if you have stands or a lift, a torque wrench, the correct oil and a way to prime the pump with VCDS. If you find metal debris or a fault code, stop and have the coupling diagnosed by a specialist.
