Haldex pump repair: Gen 4 and 5 guide for UK technicians

Gen 4 and Gen 5 Haldex pumps can sometimes be repaired, but whether that is worth attempting depends on what the motor tests show. If the coil resistance reads within the 5–8 Ω target and the housing is clean and uncorroded, a rebuild kit covering brushes, seals, and bearings is a realistic option. If the motor reads open circuit, the commutator is badly worn, or the system has been running on contaminated fluid, fit a new or remanufactured pump. Most failures trace back to a blocked filter or degraded oil rather than the motor itself, so the filter and oil must be replaced regardless of which route you take.

Quick-reference facts before you start:

• Measure coil resistance with a multimeter: healthy pump reads 5–8 Ω; open circuit means replace
• Run the VCDS/OBDeleven output test (MAS02928) after fitting — the pump should cycle for roughly 30–60 seconds
• Haldex pump failure often presents as reduced traction rather than a dramatic noise or sudden failure
• Always replace the cartridge filter and Haldex fluid at the same time as the pump, without exception
• Haldexparts stocks OEM-grade Gen 4 and Gen 5 service kits with UK dispatch

Key takeaways

A Haldex pump repair is only worth attempting when motor resistance tests within 5–8 Ω; open-circuit readings, heavy contamination, or seized fasteners call for a replacement pump paired with a new filter and fresh fluid.

Table of Contents

• Where to buy UK-compatible pumps, rebuild kits, and service kits
• How to diagnose a failing Haldex pump
• Rebuild or replace: which is right for Gen 4 and Gen 5?
• Step-by-step replacement checklist for Gen 4 and Gen 5
• Typical UK costs and expected lifespan
• Parts to replace together and common OE part numbers
• Technician checklist: VCDS and OBDeleven pump tests and relearn
• When I would rebuild a pump and when I would fit a replacement
• OEM-grade Haldex parts with UK dispatch from Haldexparts
• Sources

Where to buy UK-compatible pumps, rebuild kits, and service kits

For Gen 4 and Gen 5 systems, Haldexparts is the go-to UK source for correctly mapped parts. Products are filterable by generation and vehicle brand, which removes the guesswork around fitment. Three product pages are worth bookmarking immediately:

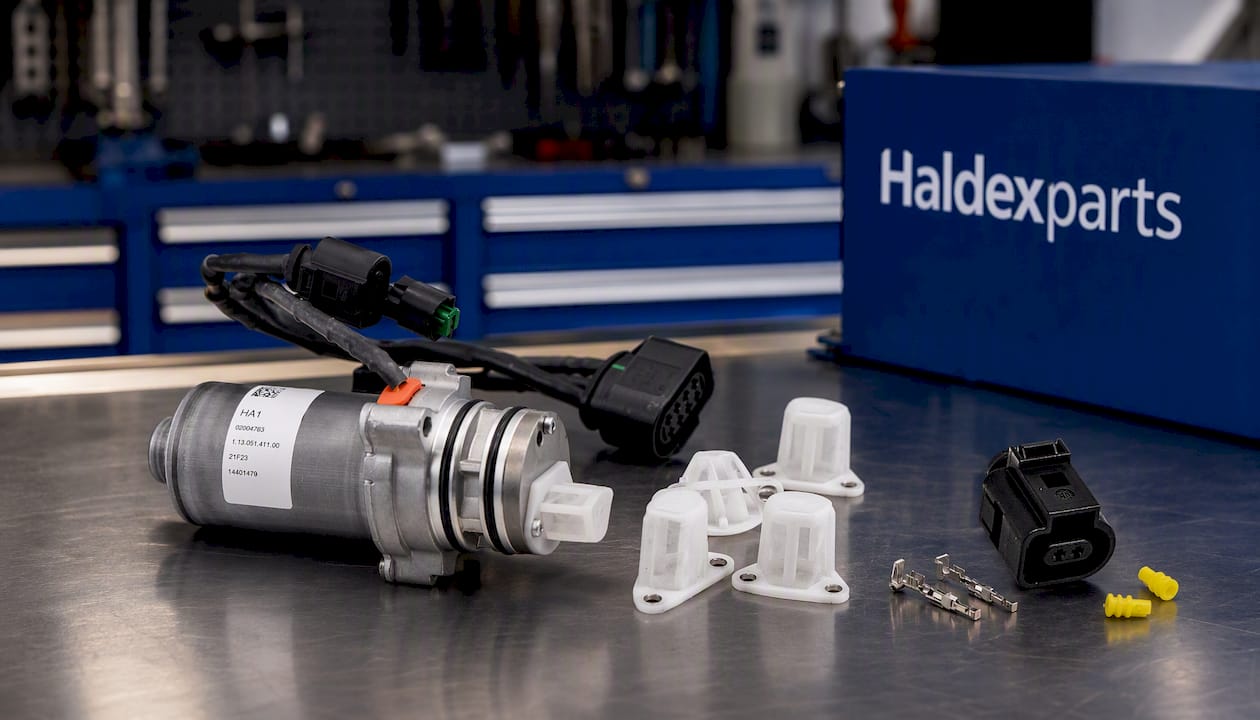

• AWD Pump Nose Replacement Tips – 1st & 2nd Generation: Seal and nose replacement kits for early-generation pumps, with procedural notes for the repair. Useful if you are working on an older unit and want to address the pump nose without a full replacement.

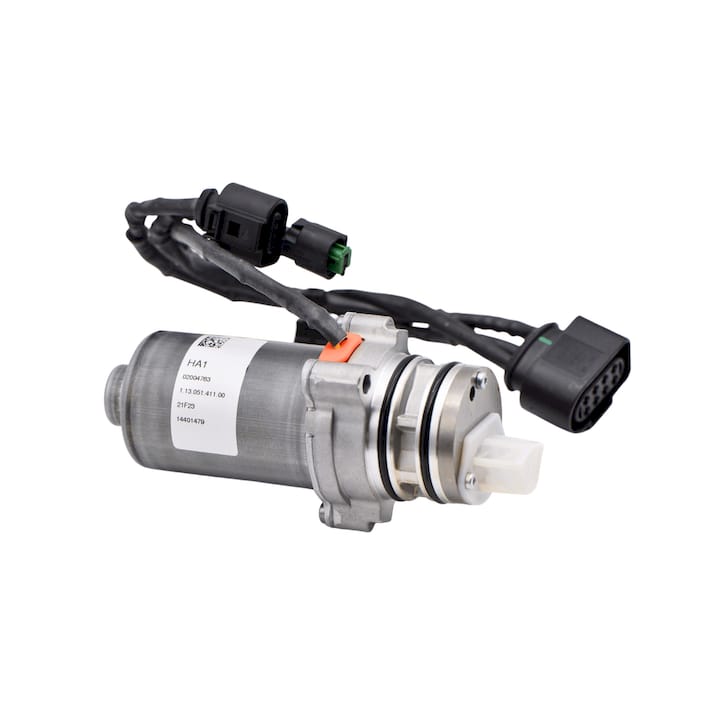

• Haldex Oil Pump 5th Generation – 9P1906271 (Porsche): Direct replacement pump for Gen 5 systems, with OE part number and fitment details. The priority purchase for any Gen 5 motor failure.
• AWD Pump Connector Plug Replacement – 2nd, 3rd & 4th Generation: Connector plug sets for the wiring interface, which corrodes and causes intermittent faults on Gen 4 units. Worth fitting at the same time as the pump.

The full service kit collection covers pumps, filters, oils, and seal sets across generations. Here is what each purchase type typically includes:

Pro Tip: Never fit a new or rebuilt pump without simultaneously replacing the cartridge filter and Haldex fluid. Contaminated oil is the most common cause of repeat pump failure, and skipping this step will likely put you back in the same position within months.

How to diagnose a failing Haldex pump

Haldex pump failure symptoms are often subtle. Reduced rear-axle engagement on slippery surfaces, intermittent AWD behaviour, EPC or traction-control warning lights, and poor hill starts are the typical signs. You will rarely hear a dramatic noise.

Follow this sequence to confirm a pump fault:

1. Scan for fault codes using VCDS or OBDeleven. Key Gen 4 codes include V181 (pump open-circuit or lower limit exceeded) and N373 (control valve electrical fault). Clear codes and recheck after a short drive.
2. Run the pump motor output test (MAS02928 in VCDS Basic Settings). Listen for the pump running and check live data for commanded versus actual pump speed.
3. Measure coil resistance across the pump motor terminals with a multimeter. A reading of 5–8 Ω indicates a healthy motor; open circuit or a reading well outside that range points to motor failure.
4. Inspect the pre-strainer and cartridge filter. A clogged mesh starves the pump of oil and causes overheating. Pull the filter and check the colour and smell of the fluid.
5. Bench test at 12 V only as a secondary confirmation, not a primary diagnostic. A pump that runs on the bench but fails under load may have worn brushes.

Tools you will need: VCDS or OBDeleven, a digital multimeter, basic hand tools, and a trolley jack or ramp for underside access.

Do not assume the ECU is at fault simply because it is commanding the pump correctly. A motor with worn brushes can behave intermittently even when the ECU signal is clean. Always verify with the output test and a coil-resistance check before condemning the control unit.

For a deeper look at interpreting fault codes and live data, the Haldex fault diagnosis guide on the Haldexparts blog covers the full workflow.

Rebuild or replace: which is right for Gen 4 and Gen 5?

A rebuild makes sense in a specific, narrow set of circumstances. Community rebuild guides confirm that Gen 1–3 pumps have been successfully rebuilt using kits containing brushes, bearings, and seals, and the same approach applies to Gen 4 units when the motor is electrically sound. Gen 5 pumps are less commonly rebuilt at DIY level due to tighter tolerances.

When a rebuild is realistic:

• Coil resistance is within 5–8 Ω
• The commutator shows light wear, not deep grooving
• The pump housing is intact with no cracks or heavy corrosion
• Electrical connectors are in good condition

When to fit a new or remanufactured pump instead:

• Motor reads open circuit or resistance is far outside spec
• Commutator is deeply scored or the brushes are worn to the stops
• The system has been running on heavily contaminated fluid
• Fasteners are seized or the housing shows corrosion damage

The Audi-Sport rebuild thread is clear that the work requires bearing pullers, careful handling of fragile electrical components, and patience. Rebuild kits are available, but quality varies considerably. If you go this route, source a kit that explicitly lists brushes, seals, and bearings, and check reviews before buying.

Pro Tip: If you are rebuilding, clean the pre-strainer mesh thoroughly and inspect the pump housing bore for scoring. A scored bore will wear new brushes prematurely regardless of kit quality.

The cost and longevity trade-offs are covered in the section below, but the short version is this: a rebuild saves money upfront and is worth attempting when the motor tests well. When the motor is gone, a replacement pump with a new filter and fresh oil is the more reliable outcome.

Step-by-step replacement checklist for Gen 4 and Gen 5

This is a high-level sequence, not a model-specific workshop manual. Always consult a vehicle-specific guide for torque figures and fastener locations.

1. Secure the vehicle on a ramp or axle stands. Never work under a vehicle supported only by a jack.
2. Drain the Haldex fluid using the drain plug on the unit before disturbing any fasteners.
3. Choose your access strategy. Two approaches are common:
   • Unbolt the Haldex controller module to gain better access to the pump without dropping the diff. This is the lower-risk method on most Gen 4 platforms and reduces the chance of damaging the case or electrical connections.
   • Lower the rear differential or briefly remove the propshaft where the module-only approach does not give enough clearance. This takes longer but is sometimes unavoidable on certain body styles.
4. Disconnect the wiring connector carefully. Corroded connectors are a common secondary fault on Gen 4 units. If the plug is brittle or the terminals are green, fit a replacement connector plug at this stage.
5. Remove the pump fasteners and withdraw the pump. If fasteners are seized, apply penetrating fluid and allow time to soak. Do not force them.
6. Inspect the pre-strainer and pickup screen. Clean or replace as needed.
7. Fit the new or rebuilt pump with fresh O-rings and seals. Do not reuse old seals.
8. Fit a new cartridge filter and refill with the correct Haldex fluid to the specified level.
9. Reconnect wiring and refit any removed components. Torque fasteners to specification where known.
10. Perform the diagnostic pump relearn using VCDS or OBDeleven (see the checklist section below).

Case damage warning: Severely seized pumps carry a real risk of cracking the Haldex casing if forced. If fasteners have sheared or the pump will not move after soaking, stop and refer to a specialist workshop. A cracked case means a far more expensive repair.

A competent technician with ramp access typically completes a Gen 4 pump swap in two to three hours. Add time if the propshaft needs to come off or connectors require replacement.

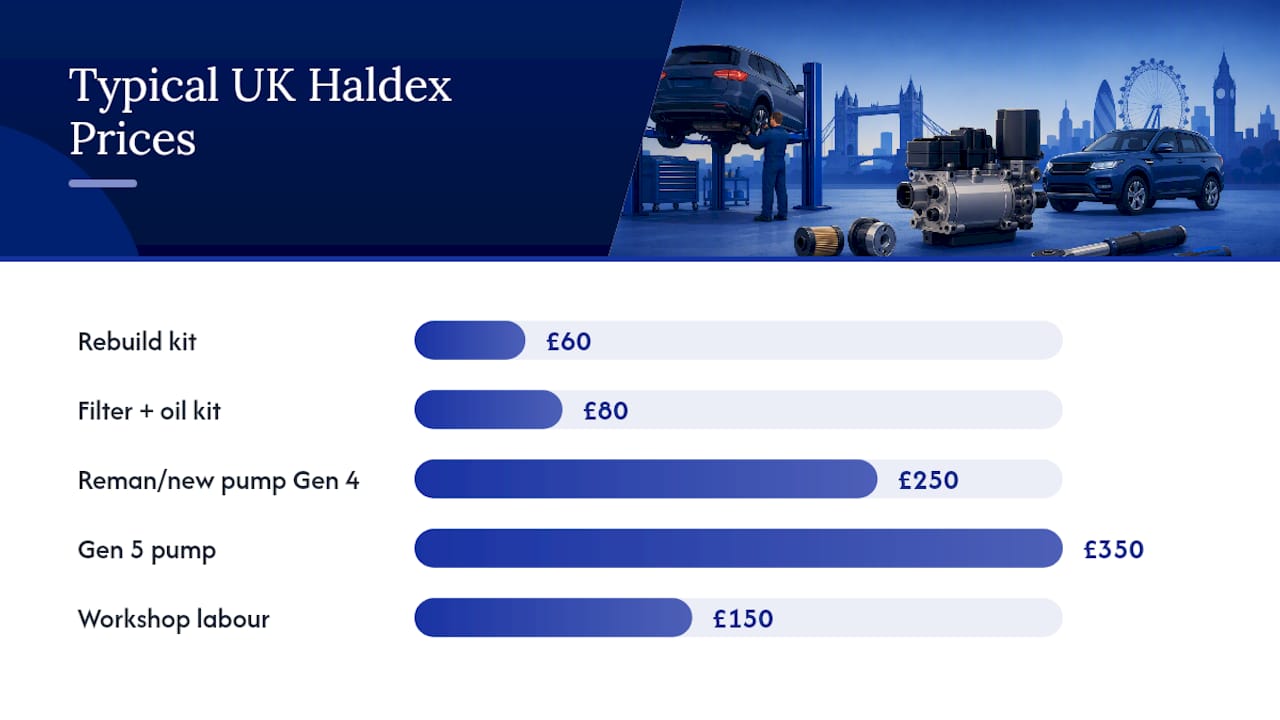

Typical UK costs and expected lifespan

Pump lifespan varies significantly with service history. Volvo recommends changing Haldex fluid and filter every four years or approximately 50,000 miles, and owners who follow that interval consistently report longer pump life. Miss two service intervals and the contaminated fluid accelerates brush wear and clogs the pre-strainer, shortening pump life considerably.

These are indicative ranges based on UK market pricing. Prices vary by vehicle model, supplier, and region.

Key lifespan factors:

• Pumps serviced at the recommended interval often reach a service life around a decade
• Neglected fluid and filter typically shortens that to 5–7 years or less
• OEM-equivalent parts from a specialist supplier reduce the risk of repeat failure compared to generic alternatives

Choosing OEM-grade parts matters more here than on many other components. The Haldex pump runs constantly in short cycles, and a substandard brush or bearing will wear faster under that duty cycle.

Parts to replace together and common OE part numbers

Fitting a pump in isolation is a false economy. These are the items to replace at the same time:

• Pump unit (new or remanufactured, generation-matched)
• Cartridge filter (part number 111358 is widely referenced for Gen 4; confirm fitment for your vehicle)
• Pre-strainer / pickup mesh (clean or replace)
• O-rings and seals (never reuse old seals when refitting)
• Haldex fluid (correct specification for your generation)
• Flange nut where supplied with the kit
• Connector plug if terminals show corrosion (especially Gen 4)

Common reference part numbers for UK fitment:

• Gen 4 pump: 0AY598549A (VW/Audi group; confirm against VIN). See the Gen 4 pump buyer’s guide for detailed fitment notes.
• Gen 5 pump (Porsche): 9P1906271 — available directly from Haldexparts
• Cartridge filter: 111358 (widely compatible Gen 4; check application list)

These part numbers are provided as reference examples. Always verify fitment against your specific VIN before ordering, and confirm whether small fasteners are included in the kit or need to be ordered separately.

Pro Tip: VW dealer “oil-only” services sometimes skip the cartridge filter entirely. If you have bought a used vehicle and cannot confirm the filter was changed, replace it now regardless of mileage.

Technician checklist: VCDS and OBDeleven pump tests and relearn

Run through this sequence after fitting a pump or when diagnosing a suspect unit.

Pre-fit diagnostic checks:

1. Connect VCDS or OBDeleven and select module 22 (AWD/Haldex).
2. Read and record all stored fault codes.
3. Go to Output Tests and run MAS02928 Pump Motor. Confirm the pump runs audibly and check live data for actual pump output.
4. With the pump disconnected, measure resistance across the motor terminals. Target: 5–8 Ω. Open circuit or a reading below 2 Ω indicates motor failure.
5. Inspect the wiring connector for corrosion or pushed-back terminals before reconnecting.

Post-fit relearn procedure (Gen 4):

1. Clear all fault codes in module 22.
2. Navigate to Basic Settings (04) in the AWD module.
3. Select MAS02928 Pump Motor and activate.
4. The pump will cycle for approximately 30–60 seconds to prime the system and reset its operational cycle.
5. Confirm no new fault codes are stored after the cycle completes.
6. Road test on a safe surface and recheck for codes.

If the relearn fails:

• Check the wiring connector is fully seated and terminals are clean
• Confirm the fluid level is correct — a low level can prevent the relearn from completing
• Clear all codes and repeat the output test before attempting the relearn again
• If fault codes return immediately, recheck coil resistance and inspect the pump connector for damage

The Haldex Gen 4 service guide at JCR Leeds provides a detailed walkthrough of the VCDS relearn steps with screenshots.

When I would rebuild a pump and when I would fit a replacement

The rebuild-versus-replace decision comes down to one thing: what the motor tests show before you start spending money.

If coil resistance sits within 5–8 Ω, the commutator shows only light wear, and the housing is solid with no corrosion damage, a rebuild kit is worth attempting. The motor is electrically alive, and replacing brushes, seals, and bearings addresses the most common wear points. That said, the work is fiddly. You need bearing pullers, steady hands around the fragile electrical components, and a clean working environment. If any of those conditions are not met, the risk of damaging the pump during the rebuild outweighs the cost saving.

When the motor reads open circuit, the commutator is deeply scored, or the system has clearly been running on black, degraded fluid for a long time, skip the rebuild entirely. A remanufactured or new pump with a full filter and oil change is the more reliable outcome, and the cost difference is rarely as large as it first appears once you factor in the labour time of a rebuild that may not hold.

Seized fasteners or corroded electrical connections are the other clear signal to involve a specialist. The risk of cracking the Haldex case when forcing a seized pump is real, and a cracked case turns a £200 repair into a much larger one. A workshop with the right tools and experience with Haldex units will remove a seized pump safely in a way that a standard socket set cannot.

OEM-grade Haldex parts with UK dispatch from Haldexparts

Haldexparts stocks OEM-equivalent service kits, pumps, filters, and seal sets mapped by generation and vehicle brand, with UK dispatch on all orders. Whether you need a Gen 5 replacement pump for a Porsche application, a full Gen 4 service kit, or a set of connector plugs to address a corroded wiring interface, the product pages include OE part numbers, generation compatibility, and clear descriptions of what each kit contains. Free shipping applies to orders over £150. B2B and bulk ordering is available for workshops needing to stock multiple kits. Browse the full service kit range or use the brand and generation filters to find the correct parts for your vehicle.
