Top Haldex rebuild kits: professional-grade guide

For professional workshops and experienced owners, the best Haldex rebuild kits are generation-specific, OEM or OEM-sourced units matched precisely to your pump part number. The shortlist below covers Gen 1 through Gen 5, with the key part numbers you need to confirm before ordering.

Generation-matched picks at a glance:

• Gen 1/2/3 — Complete pump rebuild kit (all seals, O-rings, bearings, internal wear parts). Suits VW Golf/Touareg, Audi TT/A3, Volvo XC60/XC70, Land Rover Freelander 2. OEM fluid: G052175A1. Best for thorough pump restoration on older platforms.
• Gen 4 — OEM pump repair kit reference 0BS598549 (also LR075763 / 31256757). Replaces internal seals and wear components to restore oil pressure and AWD engagement. Suits VW Tiguan, Audi A3/S3/TT, Volvo XC60, Land Rover Freelander 2, Ford Galaxy (2008–2014).
• Gen 5 — Complete pump repair kit OEM ref 0CQ598549 (also LR051321). Includes armature, brushes, bushings, seals, O-rings, and booster pump seal. Suits VW Golf R (2013+), Audi S3/TT S, Seat Ateca, Škoda Kodiaq. Seal-only option: 0CQ598305. OEM fluid: G060175A2.
• Common repair kit ref — 950355004 (Haldex OEM repair kit, cross-referenced across multiple generations and suppliers).

Pro Tip: Always confirm your Haldex generation by checking the part number stamped on the pump housing or running a VIN lookup before ordering. A Gen 4 kit will not fit a Gen 5 pump, and the two can look nearly identical on the car. Haldexparts carries generation-matched service kits with explicit fitment data to prevent costly ordering errors.

Table of Contents

• Which professional-grade kit suits your Haldex generation?
• What does a professional-grade Haldex service kit actually contain?
• How to confirm fitment and which OEM part numbers matter
• Installation steps, labour times and realistic UK costs
• Why OEM and professional-grade parts matter for Haldex systems
• Key takeaways
• The case for getting the kit right first time
• Order professional-grade Haldex kits from Haldexparts
• Useful sources and part-number references

Which professional-grade kit suits your Haldex generation?

The table below maps each generation to the recommended kit type, primary OEM references, typical contents, and a UK price band. Vehicle fitment notes follow.

Vehicle fitment by generation:

• Gen 1/2/3: VW Golf/Touareg 4Motion, Audi TT/A3/Q3 quattro, Volvo XC60/XC70/V70/S60 AWD, Land Rover Freelander 2, Saab 9-3X
• Gen 4: VW Golf 4Motion, Tiguan 4Motion; Audi A3/S3/TT quattro, Q3; Volvo XC60/XC70/S60/V60; Land Rover Freelander 2; Ford Galaxy 4WD (2008–2014)
• Gen 5: VW Golf R, Tiguan 4Motion (2016+); Audi S3, TT S, Q3 S (2013+); Seat Ateca; Škoda Kodiaq; Volvo models with Gen 5 units

For Ford and Opel/Vauxhall platforms, compatible pump parts exist across multiple generations. Confirm by VIN or the stamped pump number before ordering.

Buying quick-check: if the unit is noisy, failing pressure tests, or showing sluggish AWD engagement, a complete pump repair kit (armature, brushes, seals) is the right call rather than a seals-only kit. A rebuild restores functionality at a fraction of new-pump cost, provided the housing is intact and there is no gear damage.

What does a professional-grade Haldex service kit actually contain?

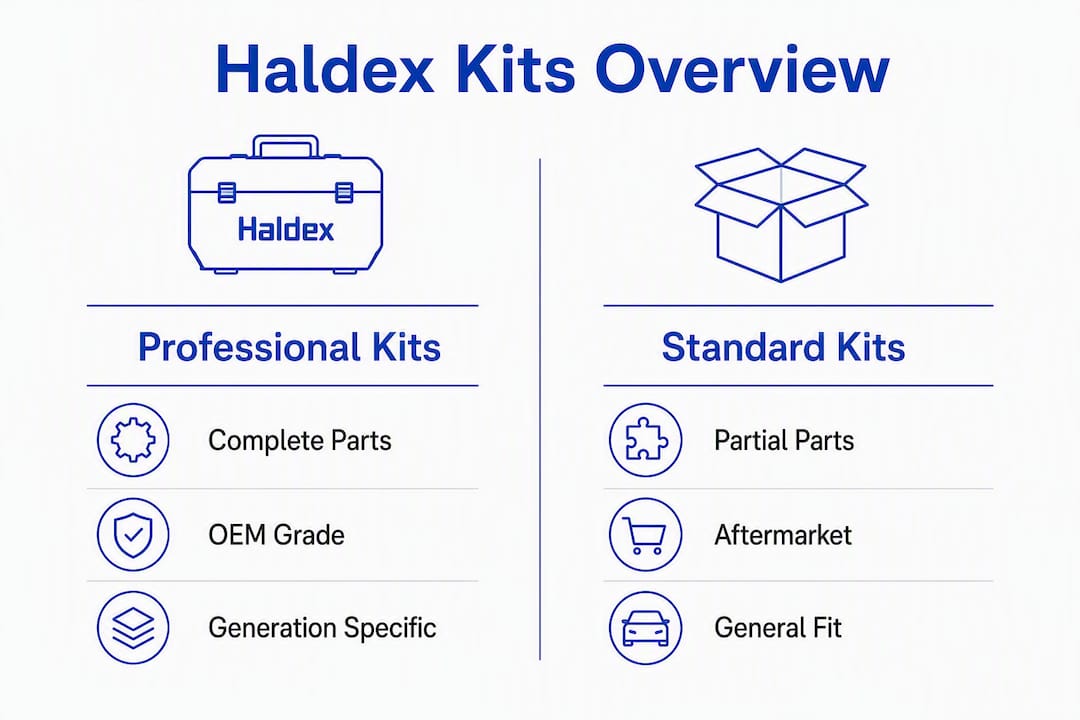

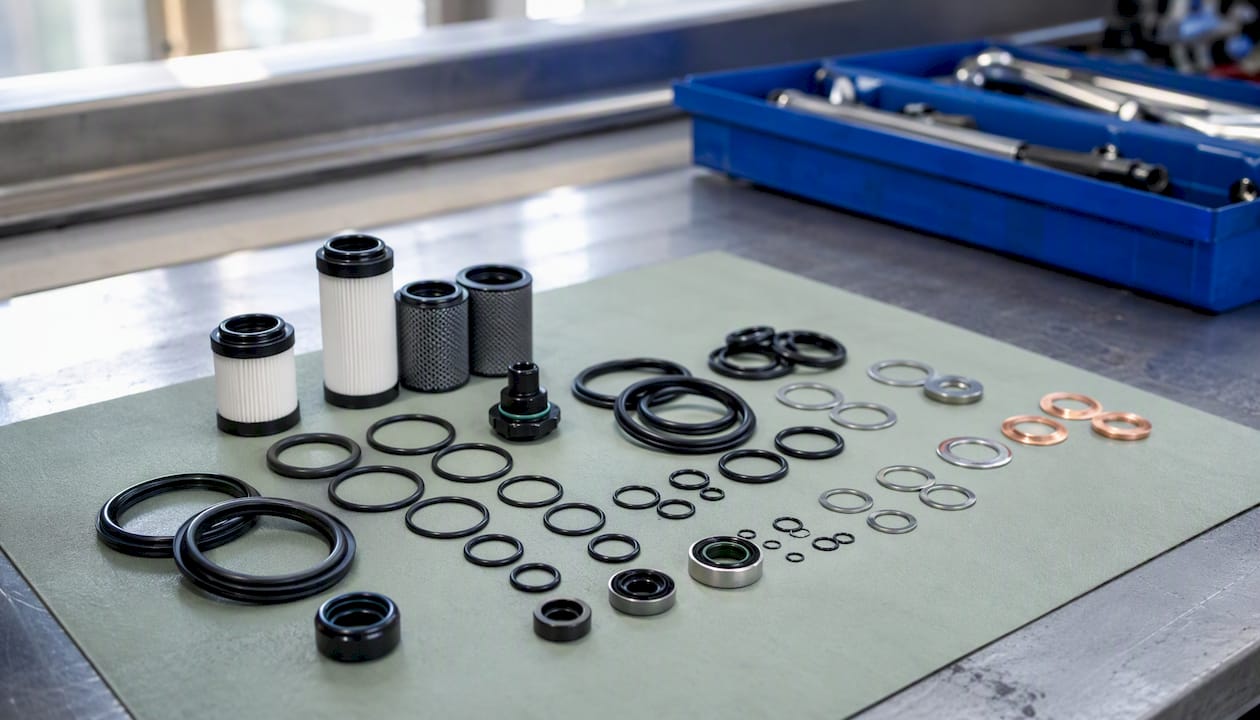

A proper rebuild kit is not just seals in a bag. Professional-grade kits for workshops include:

• Seals and O-rings — prevent oil bypass and maintain working pressure; cheap kits often use incorrect elastomer compounds that swell or harden prematurely
• Clutch plates/discs (where applicable) — Gen 4/5 clutch rebuild kits typically include a set number of inner and outer plates compatible across VAG and Volvo applications, compatible across VAG and Volvo applications
• Filter or screen — Gen 1–4 use a removable filter; Gen 5 uses a screen that must be replaced during every service
• Pump seals and bearings — restore pressure output; worn bearings are a common cause of noise before full failure
• Motor brushes and rotor/armature — the most frequent failure point on Gen 4 and Gen 5 pumps; a kit without these is incomplete for a motor rebuild
• Springs and spool valves — small but critical; a sticking spool valve causes erratic AWD engagement even with new seals
• Bolts, crush washers, and drain plugs — one-use items that must be replaced; kits assembled by vendors who also service vehicles include these as standard, which is why their kits produce fewer workshop callbacks
• OEM-specified oil — G060175A2 for Gen 4/5 VAG applications; G052175A1 for Gen 1 systems. Using the wrong viscosity or a non-OEM fluid is one of the most common causes of premature seal failure

The function logic is straightforward: seals and O-rings hold pressure, the filter keeps the oil clean, the motor components drive the pump, and the clutch plates transfer torque to the rear axle. Remove any one group from the kit and you are leaving a known failure mode unaddressed.

Pro Tip: Order one spare crush washer and an extra screen or filter alongside your main kit. They cost very little individually but can stall a job if missing. Kits assembled by vendors who also carry out Haldex services tend to include these consumables as standard.

How to confirm fitment and which OEM part numbers matter

Getting the generation wrong is the single most common cause of returns and workshop delays. Here is the confirmation checklist:

• Check the part number stamped directly on the pump housing (usually a 10-digit VAG-format number or an LR/Volvo equivalent)
• Run a VIN lookup through your diagnostic system or the supplier’s fitment tool to confirm generation
• Note the filter connector style: Gen 4 uses a plug-in filter; Gen 5 uses an integrated screen
• Cross-reference the pump number against the OEM references in the table below before placing the order

Fitment notes by vehicle group:

• VW/Audi/Škoda/Seat: largest range of kits; confirm generation by build date and VIN — Golf R and Tiguan share Gen 5, older Tiguan and A3 are typically Gen 4
• Volvo: XC60/XC70 span Gen 3–5 depending on year; Volvo OEM references (31256757 etc.) cross to BorgWarner part numbers
• Land Rover: Freelander 2 is predominantly Gen 4; use LR-prefixed OEM numbers for cross-referencing
• Ford: Galaxy and S-Max 4WD use Gen 4 units; confirm by pump stamp
• Opel/Vauxhall and Saab: Vectra OPC, Signum, 9-3X use earlier generations; confirm by pump number

Installation steps, labour times and realistic UK costs

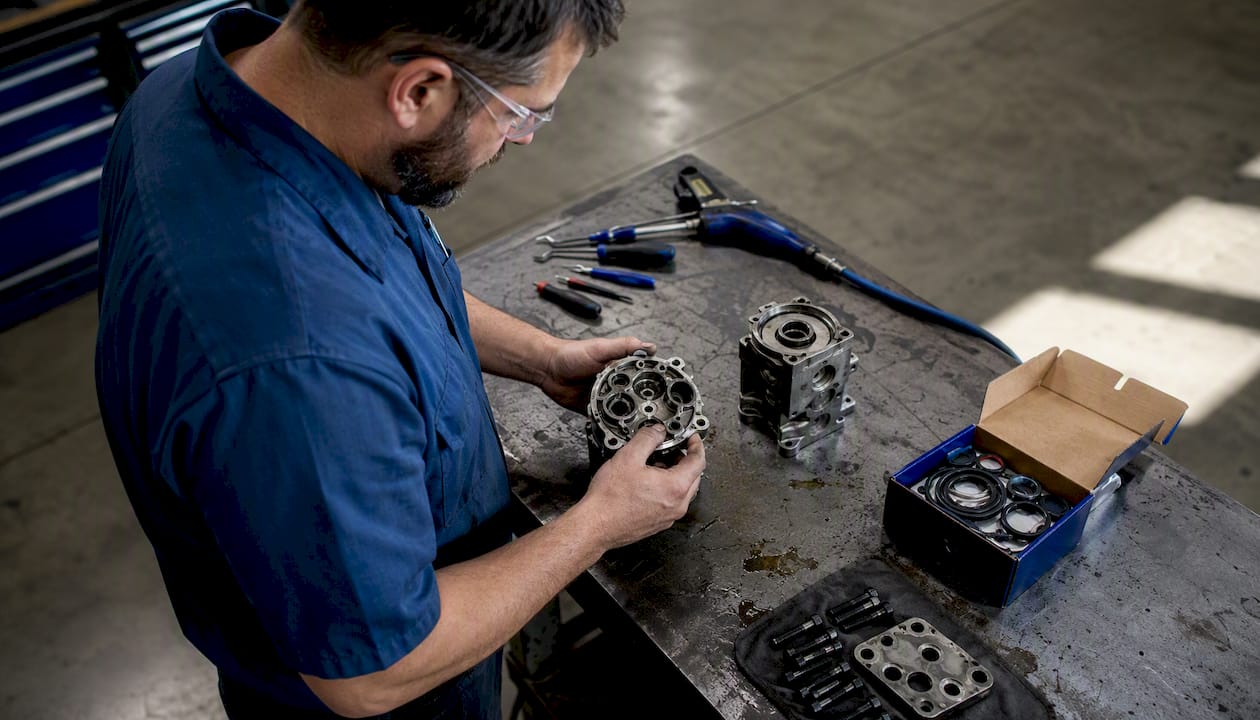

Workshop procedure

1. Drain Haldex oil fully; inspect for metal particles (a sign of gear damage that changes the rebuild decision)
2. Remove the pump assembly; clean the housing before opening
3. Replace filter or screen, all seals, O-rings, and crush washers
4. Inspect motor brushes and rotor; replace armature if brush wear is beyond the service limit
5. Check spool valve movement; clean or replace if sticking
6. Replace clutch plates if end-float or wear is outside tolerance (Gen 4/5 clutch kits)

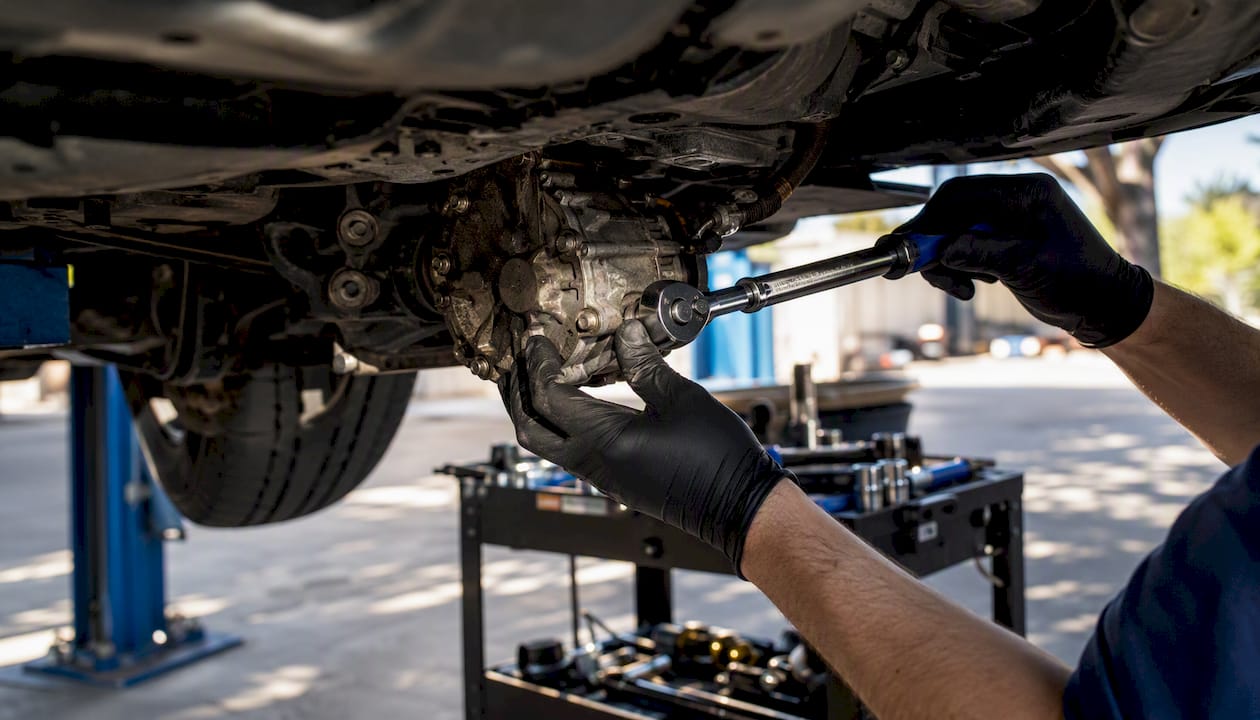

7. Reassemble to OEM torque specifications; use a new drain plug and crush washer
8. Refill with the correct OEM oil (G060175A2 or G052175A1 as applicable)
9. Clear fault codes with a compatible diagnostic tool (VCDS, VIDA, or equivalent)
10. Road-test and verify AWD engagement under load

Special tools required: pump housing removal socket, torque wrench calibrated to OEM spec, and a pressure gauge for post-rebuild verification.

Labour time and UK cost bands

A bench rebuild on a removed Gen 4 or Gen 5 pump typically takes 2–3 hours for an experienced technician. An in-vehicle service (oil, filter, seals only, no motor work) runs closer to 1–1.5 hours.

Total UK cost (kit plus labour at typical independent workshop rates) varies by generation and kit scope. A seal-and-filter service sits at the lower end; a full motor rebuild with clutch plates sits at the higher end. Sourcing an OEM-grade kit rather than a generic alternative keeps the parts cost predictable and reduces the risk of a repeat job.

Service interval: a UK workshop guide recommends Haldex oil and filter service every 20,000 miles for best results. Many units arrive for rebuild having never had a fluid change — at that point, the filter is clogged and the seals are already compromised.

Why OEM and professional-grade parts matter for Haldex systems

The Haldex pump operates at high oil pressure and relies on precise tolerances between the rotor, seals, and housing. Generic seals made from the wrong elastomer compound will swell in BorgWarner fluid, restricting flow and causing pressure loss within months of a rebuild. OEM or OEM-sourced components are manufactured to the same material and dimensional specifications as the original parts.

Kits assembled by workshops, such as Gen 5 service kits that include OEM oil G060175A2, pump seal kit 0CQ598305, and drain hardware, reflect hands-on verification of what a complete service actually requires. That is the standard professional buyers should hold any kit to.

Haldexparts supplies OEM-grade kits with explicit part numbers, UK shipping, and a returns policy — the kind of fitment transparency that reduces the risk of ordering the wrong generation. For workshop buyers placing repeat orders, B2B and bulk ordering options are available.

Pro Tip: Keep the old pump housing if it is undamaged. Some suppliers accept cores for rebuild credit, and a clean housing is useful as a reference when confirming that the new kit’s dimensions match.

Key takeaways

Generation-specific OEM or OEM-sourced Haldex rebuild kits, confirmed by pump part number before ordering, are the most reliable choice for professional workshops and experienced owners.

The case for getting the kit right first time

There is a tendency in workshop buying to treat Haldex service kits as a commodity. They are not. The Haldex pump is a precision hydraulic component, and the difference between an OEM-spec elastomer seal and a generic substitute is not visible until the rebuilt unit fails three months later.

What most guides understate is the cost of a second rebuild. The labour is the same, the diagnostic time is the same, and the customer’s confidence in your workshop is gone. A professional-grade kit costs more than a generic one, but the margin between them is trivial compared to the cost of a callback job. The economics only make sense one way.

Generation matching is where most ordering errors happen, not in the choice between OEM and aftermarket. A workshop that confirms the pump part number before ordering, uses the correct OEM oil, and replaces every consumable in one visit will see far fewer Haldex returns than one that sources the cheapest available kit and skips the fluid change. The part number is the discipline; the kit quality is the insurance.

Order professional-grade Haldex kits from Haldexparts

Haldexparts stocks OEM-grade Haldex service kits, pump motors, oils, and filters for every major generation and vehicle group, with fitment data that lets you confirm the correct kit by generation and part number before checkout.

For workshops, the practical advantages are straightforward: explicit OEM part numbers on every listing, free shipping on orders over £150, same-day despatch, and B2B bulk ordering for high-volume shops. The complete service kit range covers Gen 1 through Gen 5 across VW/Audi/Škoda/Seat, Volvo, Land Rover, Ford, Opel/Vauxhall, and Saab. If you need OEM Haldex oils or replacement filters separately, those are listed individually too.

To order: confirm your VIN or stamped pump number, select the correct generation, add recommended consumables (crush washer, screen), and choose express shipping if workshop turnaround is time-critical. For bulk or trade enquiries, contact Haldexparts directly through the site.

Useful sources and part-number references

The following pages were used to compile kit recommendations, OEM part numbers, and fitment data. Use them to verify contents and cross-reference part numbers before ordering.

• Haldex Gen 4 AWD Pump Complete Repair Kit — OEM LR075763 / 0BS598549 / 31256757 — full contents list and vehicle compatibility for Gen 4
• Haldex Gen 1/2/3 Coupling Pump Complete Repair Kit — seals, bearings, and wear parts for earlier generations
• Haldex Gen 5 AWD Pump Complete Repair Kit — OEM LR051321 / 0CQ598549 — Gen 5 motor and seal kit with booster pump seal
• Haldex Pump Repair Kits — Klifex collection — rebuild vs replace guidance and pressure-test criteria
• VW/Audi Haldex Service Kit OEM — UroTuning — OEM fluid G060175A2, drain plug numbers, and pump O-ring set 0CQ598305
• Haldex Oil Change service guide — Vas Motion, Guildford — UK workshop service interval guidance (20,000 miles)
• HALDEX 950355004 Repair Kit — Autodoc UK — cross-reference for the 950355004 OEM repair kit reference

Always confirm fitment by VIN or stamped pump number. If you are uncertain which generation or kit applies to your vehicle, contact Haldexparts before ordering.
