The Haldex power relay sits in the engine-bay fuse and relay box on most vehicles, often grouped with other drivetrain relays near the battery or bulkhead. On some Audi, VW and Volvo models it moves to an interior or rear fuse box close to the Haldex control unit. The fastest way to confirm the exact spot is to check your vehicle’s fusebox diagram or test for a click and voltage at the suspected terminals.
TL;DR:
- The relay is most commonly located in the engine-bay fuse box, but some models place it near the control unit, requiring checking diagrams to locate accurately.
- Testing the relay involves checking coil continuity and voltage at the feed terminal; no click or voltage indicates a faulty relay.
- A repeated blown fuse often signals wiring issues downstream rather than a relay or pump fault, suggesting the need for wiring inspection.
- Confirming the relay’s operation can prevent unnecessary pump replacements, as relay failure often mimics pump or ECU issues.
- Matching the pump or service kit to the specific Haldex generation is critical, with part numbers corresponding to each vehicle model and generation.
Table of Contents
- Common relay locations and why they vary by make and generation
- How to identify the correct relay for your vehicle
- Step-by-step safe inspection and electrical testing
- Diagnosis outcomes: relay, pump or ECU
- Why we start with the relay before touching the pump
- Finding the right pump or service kit once you’ve confirmed the fault
- FAQ
- Sources
Common relay locations and why they vary by make and generation
Haldex-equipped vehicles do not follow one wiring layout. The relay’s position depends on where the manufacturer chose to mount the Haldex pump, the control unit, and how the rest of the electrical system is packaged around them.
- Engine-bay fuse and relay box: this is the most common spot, usually near the battery or along the bulkhead, with the Haldex relay sitting among fuel pump, horn and cooling fan relays.
- Interior or under-dash fuse boxes: several VW and Audi models route the Haldex feed through a cabin-side box, typically when the control unit itself sits under the passenger footwell or centre console.
- Rear or luggage-area fuse boxes: estate and SUV variants with a rear-mounted Haldex pump, common on some Volvo models, sometimes place the relay near the boot floor or spare wheel well.
Volvo’s own documentation for the V70 lists multiple relays inside the engine-compartment fuse box, and warns that several relay-controlled circuits should only be serviced by a trained technician. That is a useful reminder before pulling anything that looks unfamiliar.
The variation comes down to generation and platform. Early Haldex systems favoured simpler engine-bay wiring, while later generations with more complex pre-charge pumps and dedicated control modules tend to locate the relay closer to that module, which sometimes means a different box entirely. Rather than guessing, our fuse location guide walks through reading the diagram printed on the fusebox lid or in the owner’s manual, which almost always beats searching by memory or forum photos.
How to identify the correct relay for your vehicle
A fusebox is rarely labelled “Haldex” outright, so you need to know what to look for on the diagram and on the relay itself.
- Read the fusebox lid diagram first and look for labels such as “AWD”, “pump”, “pre-charge” or a drivetrain control abbreviation specific to your model.
- Cross-reference the diagram position against the physical relay socket, confirming the slot number matches before you touch anything.
- Check the relay’s terminal markings: pin 85 and 86 are the coil (the switched trigger), while 30 and 87 carry the main power feed to the pump or control unit.
- Compare the relay’s printed part number and amperage rating against your workshop manual or wiring schematic to rule out a mismatched replacement.
- If an identical relay exists elsewhere in the box for a non-critical circuit, swap the two temporarily to see whether the fault follows the relay.
Our controller location guide covers several model groups where the relay sits close to the Haldex controller behind two Allen bolts, which is a handy shortcut once you have the diagram in hand.
Pro Tip: Photograph the fusebox diagram and the relay layout before removing anything, so you can refit everything exactly as found if the swap test is inconclusive.
Step-by-step safe inspection and electrical testing
Before any testing, switch off the ignition, remove the key, and disconnect the battery if you are working near the main fuse box. Wear eye protection, since relay sockets sometimes hold corroded contacts that can flake or spark.
- Inspect the relay and surrounding socket for corrosion, water staining or a scorched or melted casing, all signs of a chronic overload or water ingress.

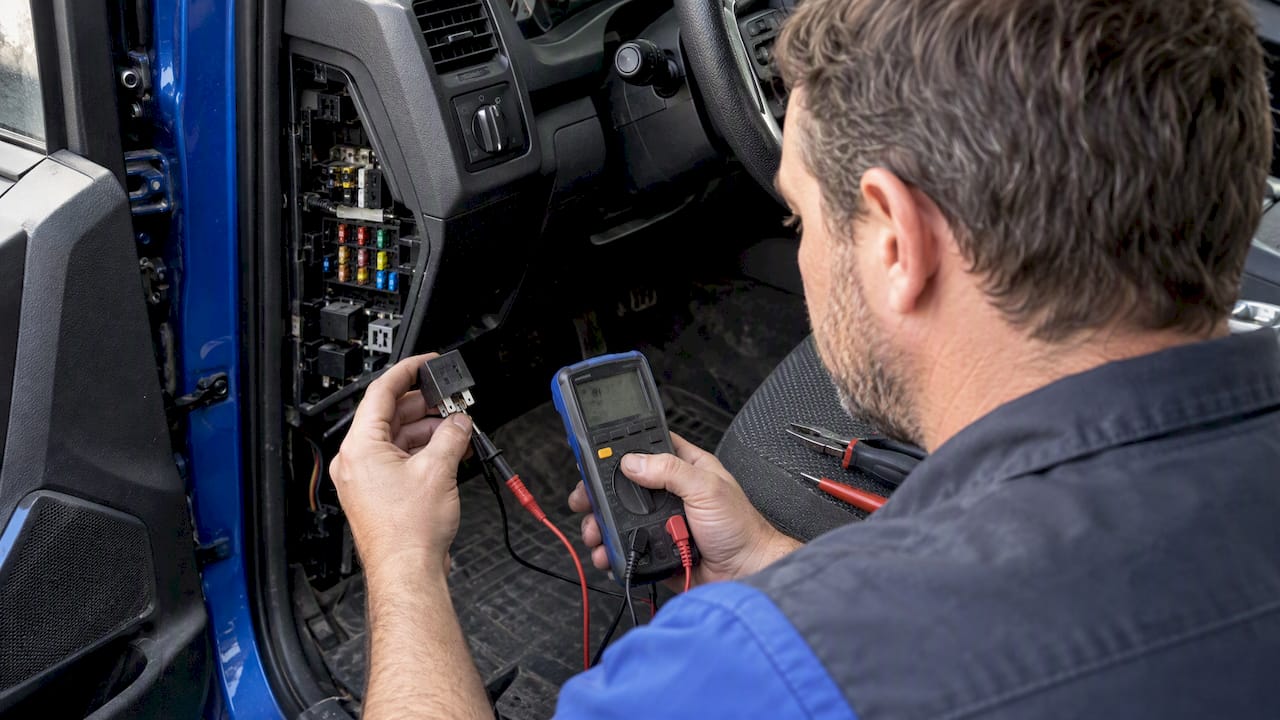

- Remove the relay and check for continuity across the coil terminals (85/86) with a multimeter set to resistance.
- With the relay reinserted and ignition on, check for 12V at the feed terminal (30) using the meter’s voltage setting.
- Have a helper command the Haldex pump, or trigger the condition that normally activates it, and check for voltage switching through to terminal 87.
- Listen for the relay’s click when it energises. No click usually means a dead coil or no trigger signal reaching it.
A few situations call for stopping and referring the job out:
- No voltage at all at the main feed, which can point to a blown fuse or wiring fault upstream of the relay.
- Intermittent faults that only appear when driving, which are hard to chase safely without a scan tool and a second person.
- Any relay the manufacturer flags as a technician-only circuit, a caution Volvo makes explicit in its fuse documentation.
If you are chasing a fuse that blows repeatedly rather than a dead relay, our fuse workflow guide covers a step-by-step approach to isolating the cause.
Diagnosis outcomes: relay, pump or ECU
Once testing is done, the pattern of results tells you which component is actually at fault.
- Relay fault: no power reaching the pump feed, an intermittent connection, or no audible click when the relay should energise.
- Pump or ECU fault: the relay clicks and switches correctly, but the pump draws no current, or an OBD scan returns Haldex-related trouble codes.
- Wiring fault: voltage present at the relay but absent at the pump connector, pointing to damaged wiring rather than either component.
If the relay tests clean, the next step is confirming whether the pump itself or the control module is the problem, which our technician’s diagnostic guide covers in more depth. A relay swap and voltage check typically takes under half an hour; chasing a wiring fault or ordering and fitting a replacement pump is a longer job, and worth booking into a workshop if you are not confident reading a wiring diagram.
Why we start with the relay before touching the pump
Years of supplying Haldex parts have shown a consistent pattern: a dead pump diagnosis is often actually a dead relay. Pumps and control units cost considerably more to replace than a relay, so testing the cheap, accessible component first saves money and avoids unnecessary dismantling.
A correct diagnosis starts with the simplest possible test. Confirm the relay clicks, confirm voltage reaches the pump feed, and only then look upstream at the pump or the control unit itself. Skipping that step is the most common reason people replace a pump and find the AWD fault unchanged.
— Mindaugas
Finding the right pump or service kit once you’ve confirmed the fault
Once testing points to the pump rather than the relay, the part you need depends on the Haldex generation fitted to your vehicle.
- The Haldex Oil pump 5th generation, part 0D4906271A, fits Audi R8 applications using the 5th generation system.
- The Haldex Oil pump 5th generation, part 9P1906271, covers the Porsche variant of the same generation.
- The BorgWarner AWD Pre-Charge Pump 0AY598549A serves 4th generation systems across Audi, VW, Skoda and Seat.
Each product page lists the vehicle and generation it fits, so matching your confirmed fault to the correct part number avoids ordering the wrong pump. Browse our full range of pumps, oils, filters and service kits to find the right match, or get in touch if you are unsure which generation your vehicle runs.
If you are still working through the wiring side of the job, this wiring guide for DIY electrical work covers the basics of relay and circuit wiring for anyone less confident with a multimeter.
