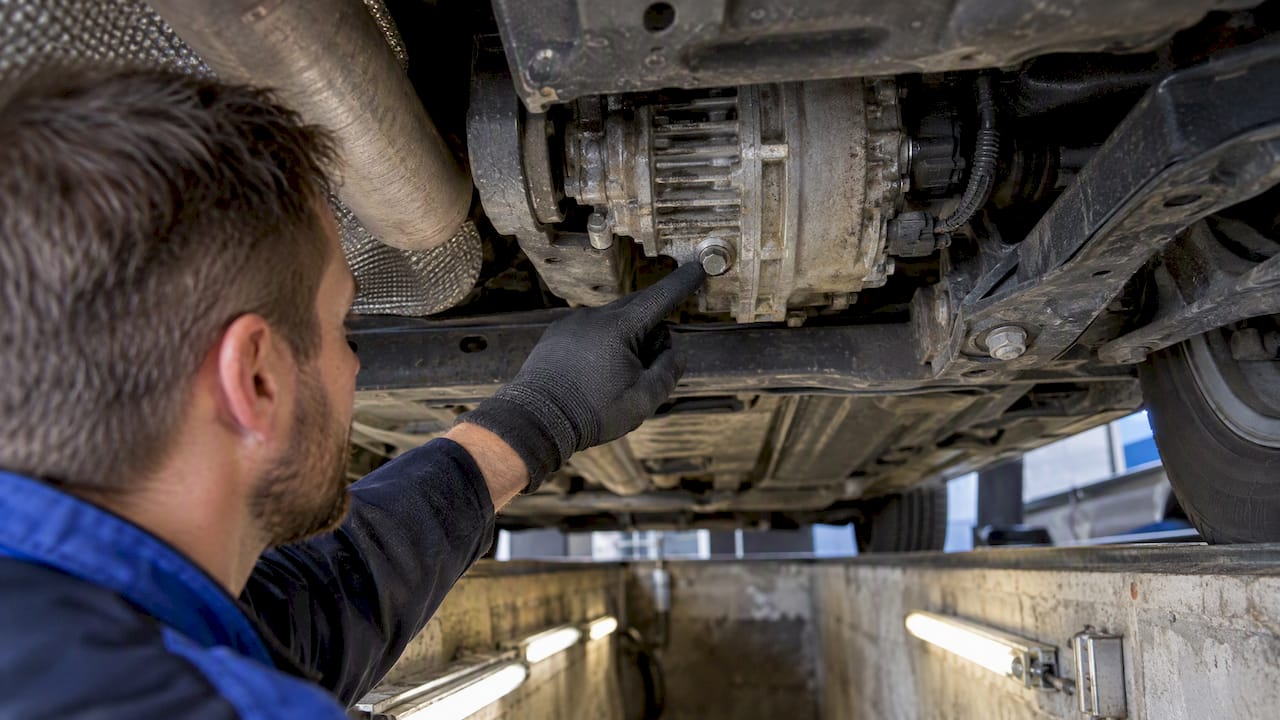

The Haldex fill plug sits on the side or top of the aluminium Haldex coupling, which is bolted to the front of the rear differential. The drain plug is on the underside. Both are small Allen or Torx bolts, and the fill plug is the one you must prove you can undo before you drain anything. AmpAuto’s Gen 4/5 guide describes the same layout: one drain plug at the bottom, one fill plug on the side or top.
The exact position, tool size and access route change with the generation and the vehicle. This guide shows you how to identify your unit, where each plug sits, which tool fits, and what to do so you never end up with an empty coupling and a seized fill plug.
TL;DR
- The Haldex unit is the cylindrical aluminium housing on the front of the rear differential. The fill plug is on its side or top, the drain plug underneath.
- Common sizes: 5 mm hex for the fill plug on many Gen 2 and Gen 4 units, 8 mm hex for the drain plug on a Mk7 Golf, T30 Torx for some Gen 4/5 fill plugs. Check your own unit before buying tools.
- Always crack the fill plug loose first. If it will not move, stop before draining.
- The fill hole is awkward to reach, so you need a fluid transfer pump or a syringe with a small hose.
- A drain and fill does not clear a clogged pump filter. If the rear axle still does not engage after new oil, the filter is the next thing to look at.
Table of Contents
- What the Haldex unit looks like and where it lives
- Fill plug location by generation
- Fill plug size and part number
- The order of work: fill plug first
- Getting oil in: the awkward fill hole
- How much oil and what level
- The drain plug magnet question
- When a drain and fill is not enough
- Why you should service it at all
- Our perspective
- Parts for the job
- Tools checklist
- FAQ
- Sources
What the Haldex unit looks like and where it lives
On Audi, VW, Škoda, Seat, Volvo, Ford and Land Rover models with Haldex all-wheel drive, the coupling is not part of the gearbox. It is a separate sealed unit with its own oil. Look under the rear of the car, just ahead of the rear differential. You will see a cylindrical aluminium housing with the propshaft entering it from the front and the differential behind it. The Willand Service Centre guide also places it at the rear axle, connected to the rear differential.
The pump and filter assembly is bolted to the housing, usually on the underside or rear face, with an electrical connector. The fill plug is not on the pump. It is a separate small bolt on the housing body.
Three separate oil systems live in this area, and they are easy to confuse:
| System | Where it is | Oil |
|---|---|---|
| Gearbox or transfer case | Front or middle of the car | Gear oil, own plugs |
| Rear differential | Behind the Haldex unit | Differential oil, larger plugs |
| Haldex coupling | Bolted to the front of the rear diff | Haldex-specific fluid only |
Experienced mechanics, as AmpAuto notes, treat these as separate systems with different oil requirements. Never assume fluid from a neighbouring housing is right for the coupling. Use the manufacturer-specified Haldex fluid.
Fill plug location by generation
The generations share the same idea, a small plug on the coupling housing, but the access differs. Treat the table as a starting point and confirm on your own car.
| Generation | Typical vehicles | Fill plug | Drain plug |
|---|---|---|---|
| Gen 1 | Early Audi TT, Golf R32, Passat 4Motion | Side of the housing, check the unit | Underside |
| Gen 2 | Audi A3/TT 8L/8N era, Golf 4Motion | Side of the housing, 5 mm hex per a Leeds Gen 2 service guide | Underside |
| Gen 3 | Volvo XC90, S60R, V70R | On the body, behind the pump on some Volvos | Underside |
| Gen 4 | Golf Mk5/Mk6, Audi 8P, Freelander 2, Volvo P3 | Side or top, often 5 mm hex | Underside |
| Gen 5 | Golf Mk7, Audi 8V, Audi R8 | Side or top, hex or Torx depending on unit | Underside, 8 mm hex on a Mk7 Golf |
A few real-world details help:
- Gen 2: a Leeds workshop guide lists removing the fill plug with a 5 mm hex key as the first step of the emptying procedure, with the car level on a ramp.
- Gen 3 and P3 Volvos: FCP Euro’s P3 guide says the plastic fill plug sits just behind the pump, with a slot in the centre roughly the thickness of a dime. That is a different style from the metal Allen plugs on VAG cars.
- Gen 4: a detailed Gen 4 procedure on VWVortex describes a 5 mm hex fill plug and tells you to confirm it can be removed before you drain anything.
- Gen 5 on a Mk7: a Mk7 DIY thread lists an 8 mm hex for the drain plug, a 5 mm hex for the fill plug and a T30 for the pump bolts.
Sources disagree on Torx versus hex for the fill plug on later units, which is why you should look at the plug itself, with a torch and a clean rag, before you pick up a tool.
Fill plug size and part number
The plug used on many VW, Audi, Škoda and Seat Haldex units is an M10 x 1 x 10 plug, VAG part number N90281802. Darkside Developments lists it as an OE fill plug for the rear Haldex. Plug specifications vary by chassis and generation, so confirm the part number for your car before ordering a replacement.
Two practical points on the plug itself:
- Replace the sealing washer or gasket. A reused crushed washer is a common cause of a weeping Haldex after a service.
- Inspect the head. Rounded or corroded hex sockets are the main reason a fill plug refuses to move. Clean the socket with a pick and a wire brush before you put a bit in it.
The order of work: fill plug first
This is the rule that separates a ten-minute job from a tow truck. Volvo Club UK’s transmission FAQ says to loosen the fill plug before removing the drain plug. If the fill plug is seized or stripped after you have emptied the unit, you cannot refill it, and the car is stuck until you extract the plug.
- Warm the oil. A short drive makes the fluid flow more easily. Park on level ground, preferably on ramps or a lift, and let the car cool enough to touch the housing.
- Clean around both plugs. Road salt and grime around the plug will fall into the unit when you open it.
- Crack the fill plug loose, then snug it back. Use the correct size bit, a short tool if access is tight, and steady pressure.
- Position a drain pan and remove the drain plug. Let it empty fully.
- Inspect the drain plug. Fine grey paste on the plug is normal wear. Metal flakes or chunks are not.
- Refit the drain plug with a new washer. Torque it to the specification for your unit. One Mk-series owner thread quoted 30 N·m (22 ft·lb) for a drain plug, but treat that as one owner’s figure, not a spec for your car, and check the workshop manual.
- Refill through the fill hole with a hand pump or syringe.
Our own drain plug removal guide walks through the drain side in more detail.
Getting oil in: the awkward fill hole
The fill hole is small, sits close to the differential or exhaust, and is often angled. You cannot pour from a bottle. The Willand Service Centre guide lists a fluid transfer pump or syringe as essential for this reason.
Two workable methods:
- Hand pump on the bottle. A cheap fluid transfer pump from an auto parts shop screws onto the oil bottle. One owner on a Mk-series thread noted that part of the VW bottle cap fits the pump, which reduces spills when working under the car.
- Syringe and hose. A large syringe with a 2 to 4 mm hose reaches the hole at an angle where a pump nozzle will not. We cover it in our fill adapter workaround.
Push the new fluid in slowly. If you rush, it backs up and sprays out of the hole.
How much oil and what level
The Haldex coupling does not have a dipstick. The level is the bottom edge of the fill hole, but because the hole is awkward, most people work from the capacity figure for their generation.
For reference, Land Rover’s service data for the Freelander 2 lists 0.65 litres (1.1 pints) for the Haldex coupling, using STAT OIL SL01-301. That figure applies to that vehicle. Other generations take different amounts, so use the figure for your chassis. Our refill capacity guide lists them by generation.
Overfilling is not harmless. Too much oil can change how the clutch pack behaves and put pressure on seals. If you suspect it, our overfill symptoms checklist shows what to look for.
The drain plug magnet question
A magnetic drain plug collects ferrous particles from the clutch pack before they reach the pump strainer. 034Motorsport sells a kit designed to replace both the factory drain and fill plugs on Audi 8J/8P/8V/8S/8Y and VW Mk5 to Mk8 models. RacingLine makes a similar argument: debris collects around the pump’s oil strainer, and the system stops working properly as it blocks.
Both are manufacturers of the product, so read the claim as a reasonable maintenance idea, not as independent proof. A magnet is cheap, and it also shows you what is circulating in the unit each time you service it. It is not a substitute for changing the filter.
When a drain and fill is not enough
If the rear axle still does not engage, or the car feels front-wheel drive on launch after fresh oil, the pump filter is the usual suspect. RacingLine’s page describes sludge building up on the internal pump filter that simple drain-and-fill services do not clear. You may need to remove the pump assembly and clean or replace the filter.
Our write-ups cover the next steps:
- How an upgraded filter improves Haldex flow
- Haldex solenoid cleaning for Gen 3/4
- The 30,000 to 50,000 km coupling service
If the unit has been neglected for a long time, think about getting a specialist to inspect it. Dirty oil that looks black and smells burnt means the clutch pack is wearing.
Why you should service it at all
Some early owner’s manuals list no Haldex service interval. That does not mean it never needs attention. As a Freelander 2 Gen 4 guide on LandyZone points out, many AWD problems, including loss of rear-wheel drive, come from neglected maintenance, not catastrophic failure. See our explanation of why Haldex needs flushing for the reasoning.
Our perspective
Most of the Haldex jobs we hear about start with a fill plug problem, not a pump problem. Someone drains the unit first, finds the fill plug rounded or locked in place, and is stuck. We always tell customers: do the fill plug first, with the right bit, on a cleaned head, and treat a plug that will not move as the job itself, not as an obstacle.
The second thing we see is mismatched parts. The oil, filter, plug and pump must match the generation. A Gen 2 kit will not suit a Gen 5 unit, and a Gen 4 filter is not interchangeable with a Gen 5 one. That is why our catalogue is organised by brand and by Haldex generation, not just by model name.
And the third is expectation. A fluid change is maintenance, not a repair. It keeps a healthy coupling healthy. If the pump filter is already blocked, or the pump is failing, new oil on its own will not fix it, and you are better off knowing that before the weekend you set aside.
— Mindaugas
Parts for the job
We supply OEM-grade Haldex pumps, oils, filters, ECUs, control units and complete service kits for Audi, VW, Ford, Land Rover, Volvo, Škoda, Seat, Opel, Saab and Vauxhall, selectable by brand and by generation. Garages, fleet managers and wholesale buyers can also order in bulk. Free shipping applies on orders over £150.
For a 5th generation service, look at our seal repair kit and oil set for the Haldex pump, or browse the full range of Haldex service parts to find the kit for your generation.
Tools checklist
Before you go under the car, lay out:
- 5 mm and 8 mm hex bits, and a T30 Torx, depending on your unit
- A short ratchet or open-ended spanner for tight access
- Fluid transfer pump or syringe with a 2 to 4 mm hose
- Drain pan, rags and brake cleaner for the housing
- New sealing washers for both plugs
- The correct Haldex fluid for your generation, plus a filter if you are opening the pump
- Ramps or a lift with axle stands, never just a jack
FAQ
Where is the Haldex fill plug?
It is on the side or top of the aluminium Haldex housing, which is mounted on the front of the rear differential. On Volvo P3 cars it sits just behind the pump. Look for a small hex or Torx bolt that is separate from the large differential plugs.
Do I remove the fill plug or the drain plug first?
The fill plug. If it is seized or stripped, you want to find that out while the unit is still full. Loosen it, snug it back, then drain.
How do I check the Haldex oil level?
There is no dipstick. The level is the lower edge of the fill hole when the car is level, but the hole is awkward, so most owners refill by the capacity figure for their generation and check carefully. Do not overfill.
How often should Haldex fluid be changed?
Many early manuals give no interval, but professionals recommend periodic fluid and filter changes. Our coupling service guide uses 30,000 to 50,000 km as a working range for VW and Audi models. Check your manual and your driving conditions.
Can I use gear oil from the rear differential?
No. The Haldex coupling needs its own specified fluid. Differential or gearbox oil is a different product for a different system.
