The Haldex Gen 5 screen is a fine plastic strainer fitted to the pump of the rear-drive coupling. It is not a replaceable filter cartridge. It catches clutch-friction debris before that debris reaches the pump, so the way to look after it is to remove the pump, clean the strainer and refill the system with fresh fluid. A drain and fill alone leaves the debris where it is. This guide covers where the screen sits, which cars have it, the symptoms of a blocked one, how often to service it and what to buy.
TL;DR
- The Gen 5 screen is a strainer on the Haldex pump. Gen 5 has no traditional external filter, so the screen is the only thing protecting the pump from clutch debris.
- Gen 5 is fitted to cars such as the Audi A3/S3/RS3 (8V), TT/TTS/TTRS (8S) and VW Golf R (5G), plus later Tiguan and Passat models.
- A blocked screen can starve the pump of oil. Watch for front-wheel spin under load, frequent traction control activity and a pump fault code.
- Service means removing the pump, cleaning the screen and housing, renewing the pump seals and refilling with the correct fluid. One common recommendation is every 10,000 miles.
- Check the part against your VIN before you order. Fitment varies by model and year.
Table of Contents
- What the Gen 5 screen is and where it sits
- Which cars have a Gen 5 Haldex system
- Why a blocked screen matters
- Symptoms of a restricted screen
- How often to service a Gen 5 system
- Servicing the screen step by step
- What to replace and what to clean
- Our view: the screen is the cheapest insurance in the system
- Get the parts for your Gen 5 service
- FAQ
- Sources
What the Gen 5 screen is and where it sits
A Haldex coupling sends drive to the rear axle through a wet multi-plate clutch. A pump builds the oil pressure that squeezes the clutch plates together. Audi describes the Gen 5 design in its A3 introduction and aftersales training document as a new pressure-control system built around an axial-piston pump with an integrated centrifugal governor.
That pump draws oil from the coupling housing. Between the oil and the pump sits the screen, a small fine-mesh strainer on the pump body. Earlier generations used a separate filter, and that is why owners hunt for a “Gen 5 filter”. Willand’s servicing guide explains that Gen 5 lacks a traditional filter and relies on the pump strainer instead.
Three practical points follow from this:
- The screen is part of the pump assembly. You reach it by removing the pump from the rear differential housing.
- It is a cleaning item, not a consumable you swap at every service.
- The oil in the coupling carries everything the clutch wears off. Every bit of that material passes the screen.
We have written about this in more detail in our piece on why Gen 5 Haldex has no replaceable filter, including the time the screen service takes a competent DIYer.
Which cars have a Gen 5 Haldex system
Gen 5 is the most common Haldex generation on late-model transverse-engine platforms. One published breakdown lists Generation 5 on the Audi A3/S3/RS3 (8V), TT/TTS/TTRS (8S) and VW Golf, Golf R and 4Motion (5G, 2012 to 2019). The same list adds the Tiguan (5N) built after November 2013 and the Passat (3C) after 2015.
Several things to keep in mind for the US market:
- Not every trim of these models has all-wheel drive. A Golf or A3 with front-wheel drive has no Haldex unit at all.
- Model years and market equipment differ between Europe and the US. A European fitment list is a starting point, not a guarantee for your car.
- Other brands built on the same platforms, and some Volvo, Ford and Land Rover models, use Haldex couplings of various generations. Do not assume Gen 5 from the badge alone.
The safest identification routes are your VIN, the part number printed on the existing pump and the pump connector. Our Gen 5 pump connector plug replacement set is listed against the 0CQ598305 pump, which is a useful reference when you check what you are looking at.
Why a blocked screen matters
The clutch packs wear slowly during normal use. The friction material suspends in the oil. According to Willand, clutch-friction particles build up and the strainer can block, restricting oil flow, which can lead to oil starvation and early pump failure.
Fluid supplier Liqui Moly makes the same point in a technical information sheet for the US market. It says that thorough cleaning during a fluid change is essential to prevent sludge and debris from clogging the pump and strainer. It also notes that as the old fluid drains, thicker, waxy particles and clutch debris can come out with it.
The practical conclusion is simple. If you only change the oil, you refresh the lubricant but leave the contamination at the strainer. A proper service treats the screen and housing as part of the job.
Symptoms of a restricted screen
A restricted screen rarely announces itself with a dashboard warning. One Tiguan service guide lists the typical signs: excess front wheel spin under hard acceleration, frequent traction control activity and a pump fault code such as C111204 that appears only when you scan the car with a tool like VCDS or OBDeleven.
What you may notice in daily driving:
- The car feels like a front-wheel-drive car on wet roads, gravel or snow, when it used to hook up.
- The traction control light flickers during moderate acceleration.
- A stored Haldex pump or clutch fault with no obvious electrical cause.
Telling a screen problem from other Haldex faults
These symptoms overlap with other problems, so scan first, then service. Likely alternatives include:
- Worn or damaged pump internals. A pump that has already starved may not recover after cleaning.
- Electrical faults. A damaged pump connector or wiring gives intermittent or no engagement. Inspect the connector before you condemn the pump.
- Control unit software or hardware. A fault in the controller can look like a mechanical issue.
- Old, degraded fluid. Fluid that is overdue can cause sluggish engagement even with a clean screen.
Our own guide on how to tell your Haldex needs attention now walks through the signs in order. If a scan shows a mechanical pump fault, assume the screen is worth inspecting at the same time as the pump.
How often to service a Gen 5 system
Here owners meet conflicting advice. Some dealerships describe the fluid as filled for life. Independent specialists disagree. Willand recommends servicing Gen 5 every 10,000 miles and removing the pump to clean the strainer and housing when the oil is changed. We use the same 10,000-mile figure for Gen 5 in our Haldex service interval guide.
In owner forums you will find the same split. Participants on one Swedish-car forum thread describe dealers saying lifetime fluid while others advise replacement. Treat forum posts as opinion, and use your driving as the deciding factor:
- Hard launches, towing, track days or tuned software load the clutch harder. Shorten the interval.
- Mostly gentle commuting lets you stay near the longer end of what your specialist recommends.
- If the car is bought used with no history, treat the system as overdue and service it.
If you are unsure whether a delay in rear engagement is normal, a mechanic’s view helps. This article on delayed AWD engagement is a good starting point for judging what counts as a long delay before you book a diagnosis.
Servicing the screen step by step
This is the outline of a Gen 5 service. Always follow the procedure for your specific vehicle from the manufacturer’s workshop information. Our own seven-step DIY guide to Gen 5 service and screen cleaning gives more detail.
- Scan the car first. Record any Haldex fault codes so you know what you started with.
- Raise and support the car safely on stands or a lift. Never work under a car held only by a jack.
- Drain the old oil. Our drain plug removal guide covers the plug, which can be stubborn.
- Unplug and remove the pump. Keep the area clean. Dirt that falls into the housing defeats the point of the service.

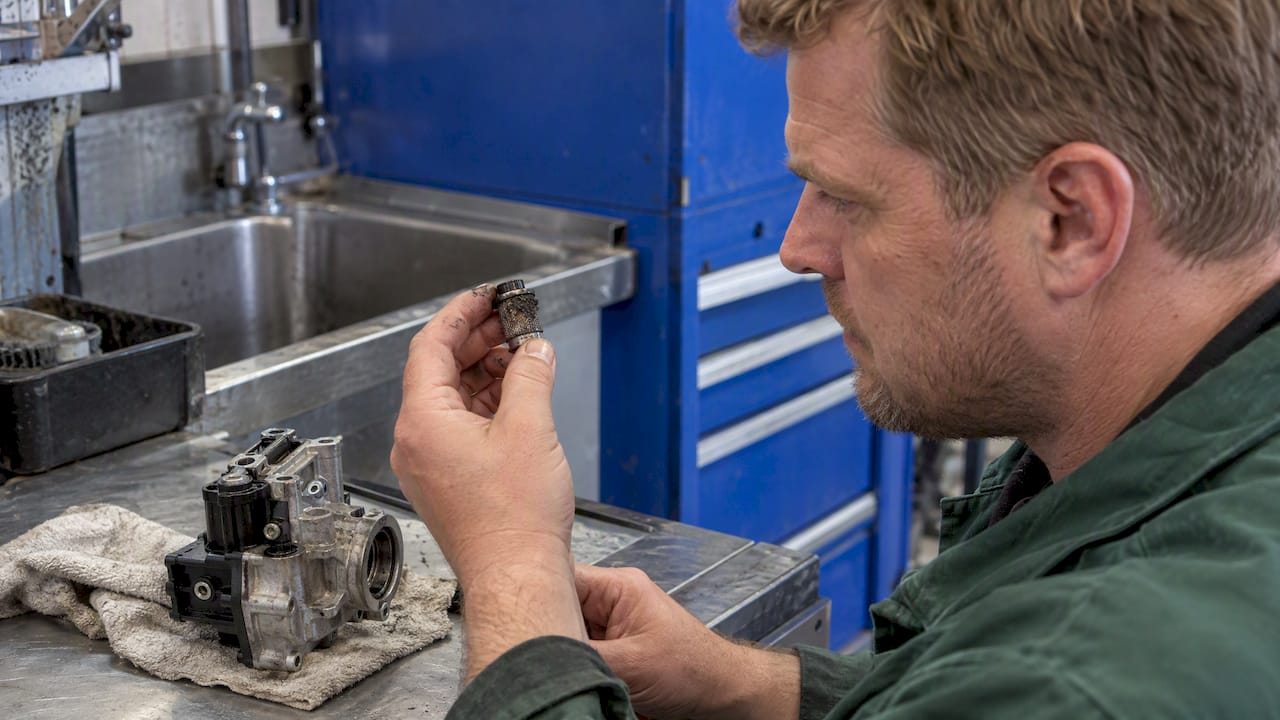

- Remove the strainer from the pump and clean it. Inspect it for clogging and for metal or friction particles. Clean the pump housing too.
- Renew the pump seals. Do not reuse old O-rings.
- Refit the pump and refill with the fluid specified for your car and generation, to the correct quantity.
- Run the basic settings or adaptation with a suitable scan tool if your car requires it, then road test and re-scan for codes.
A published wiki procedure for a Gen 5 service describes the same sequence, with the strainer held on the pump by two Philips screws, the pump removed, seals replaced and the system refilled. Treat it as a walkthrough of what to expect, not as your specification.
Time and tools: a first-time DIYer should budget a few hours, and our guide cites 45 to 90 minutes for the screen service itself once the pump is accessible. You need a torque wrench, a fluid pump for refilling, a clean drain pan and a scan tool. If any part of the list feels beyond you, our guide on whether to DIY or book a workshop helps you decide.
Choosing the fluid
Use the fluid that meets the specification for your coupling and generation. Do not guess from a bottle label, and do not use ordinary gear oil. Match the specification to your VIN and check it against your workshop information. Our oil and part number table by generation lists what suits each Haldex generation.
What to replace and what to clean
| Part | Clean or replace | Notes |
|---|---|---|
| Pump strainer (screen) | Clean | Inspect for blockage and debris at every service |
| Pump seals | Replace | Renew every time the pump comes off |
| Haldex fluid | Replace | Use the specification for your generation |
| Pump nose tip | Replace if worn | Check when the pump is out |
| Pump connector plug | Replace if damaged | Check pins and housing for heat or corrosion |
| Pump | Replace if starved or failed | Confirm with scan data and inspection |
The nose tip is the part of the pump that contacts the internal drive. Our 5th generation pump nose replacement tip set is listed as OEM-compatible for a range of Audi, VW, BMW, Volvo and Jaguar applications. Check compatibility against your pump before buying.
Our view: the screen is the cheapest insurance in the system
We sell Haldex parts all day, and we see the same pattern. Owners who change the oil but never open the pump are surprised when the pump fails at 80,000 miles. Owners who clean the screen on a regular schedule rarely contact us about a dead pump.
That is why we build our service kits around the whole job: fluid, seals and the parts that wear when the pump comes out. A drain and fill is the minimum. The screen clean is where the service pays for itself. Our parts are OEM-grade and sorted by brand and Haldex generation, so a Golf R owner does not need to decode a part number list to find the right items.
We also think the “lifetime fluid” idea does owners no favours on a car that sends drive through a wet clutch. Clutch material has to go somewhere. On Gen 5 it goes to the screen.
— Mindaugas
Get the parts for your Gen 5 service
HaldexParts.co.uk supplies OEM-grade pumps, oils, filters, ECUs, control units and service kits for Audi, VW, Ford, Land Rover, Volvo, Škoda, Seat, Opel, Saab and Vauxhall, selectable by brand and by Haldex generation. Orders over £150 ship free, and bulk and workshop orders are available.
Start on our main parts catalogue, pick your brand and Gen 5, and you will see the items that fit. Prices are shown on each product page.
FAQ
Can I buy a Gen 5 Haldex screen on its own?
The screen is part of the pump assembly, so it is normally cleaned rather than replaced. If it is damaged or the pump has already failed, the pump itself is the replacement item. Check the part number on your pump before ordering.
Do I need to remove the pump to clean the screen?
Yes. The strainer sits on the pump, so you must remove the pump to reach it. This is the reason a drain and fill alone does not clean it. Specialists recommend cleaning the strainer and the housing at the same time as the oil change.
How do I know if my car has Gen 5 Haldex?
Check your model and year against a fitment list, then confirm with your VIN and the part number on the pump. Gen 5 is used on cars like the Audi A3/S3/RS3 8V, TT 8S and Golf R 5G. US trims differ from European ones, so do not rely on the model name alone.
Will cleaning the screen fix my AWD problem?
It can, if a restricted screen is the cause. Scan the car first, because a faulty connector, a failed pump or a controller fault gives similar symptoms. If the pump has been starved of oil for a long time, it may need replacing as well.
How often should I clean the screen?
One common recommendation for Gen 5 is every 10,000 miles, at each oil service. Cars that are driven hard or tuned may benefit from shorter intervals. Ask a Haldex specialist if your history is unclear.
