A Gen 5 Haldex does not have a conventional replaceable oil filter, and no manufacturer lists one for it. What it does have is a small pump screen or strainer that catches debris before it reaches the precharge pump, and cleaning that screen during a fluid service is the practical step most owners mean when they talk about a “Gen 5 filter.”
TL;DR:
- Gen 5 Haldex units do not have a replaceable oil filter; instead, they rely on a removable screen at the pump inlet that must be cleaned during servicing.
- Identification of Gen 5 involves checking the pump housing and VIN, as the housing is smoother without a canister, unlike earlier generations that have a clear filter canister.
- Servicing Gen 5 requires draining fluid, removing and cleaning the pump screen, flushing the pump, and performing a system relearn with a diagnostic tool to prevent faults.
- Neglecting screen cleaning and fluid replacement can cause pump noise, fault warnings, and reduced traction due to debris buildup.
- Correct parts and tools must match the generation, with Gen 5-specific replacement tips available for the pump nose, and VIN checks are recommended before ordering.
Table of Contents
- What Gen 5 Haldex uses instead of a replaceable filter
- How to identify whether your Haldex is Gen 5
- Step-by-step Gen 5 maintenance without a filter to replace
- Symptoms and risks when the screen and fluid get neglected
- Hands-on tips and common pitfalls from HaldexParts
- A note from someone who answers these questions daily
- Where to get the parts and tools for the job
- Sources
- FAQ
What Gen 5 Haldex uses instead of a replaceable filter
Earlier Haldex generations, from Gen 1 through Gen 4, used a canister style oil filter that sat inline and could be unscrewed and swapped like an engine oil filter. Gen 5, introduced starting roughly in the early 2010s, dropped that canister entirely in favour of a simpler design built around the precharge pump itself.
According to ECS Tuning’s identification and service guide, Gen 5 units rely on a small removable screen at the pump inlet rather than an integrated filter cartridge, and no OE replacement filter part exists for this generation. That absence is exactly where the myth started.
- Owners who serviced Gen 1 to 4 units expect a filter change and assume Gen 5 must hide one somewhere.
- Forum threads describing “cleaning the Gen 5 filter” are actually describing the pump screen, not a separate filter part.
- Parts catalogues that list a “Haldex filter” almost always refer to Gen 4 or earlier kits, which fuels the confusion when buyers search for a Gen 5 equivalent.
The simplification made sense from a manufacturing standpoint: fewer parts, fewer seals, less chance of a filter housing leaking. It also meant the maintenance conversation shifted from “replace the filter” to “clean the screen and flush the fluid,” a change that never quite made it into common knowledge.

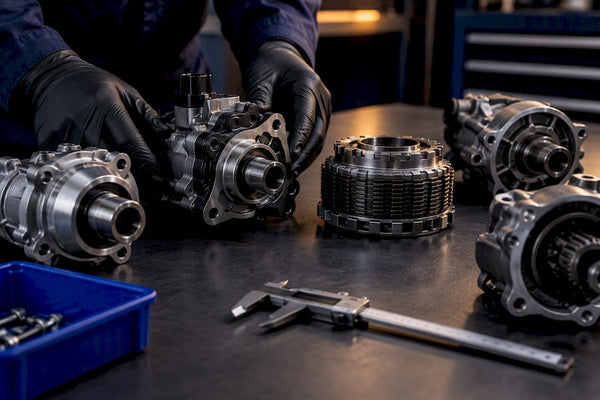

How to identify whether your Haldex is Gen 5
Before ordering parts or planning a service, confirm which generation you actually have. Guessing by model year alone is risky, since production overlaps mean two cars from the same year can carry different Haldex units.
- Run a VIN based compatibility check rather than relying on the badge year, since Haldex generation is tied to the actual unit fitted, not the model line.
- Look at the unit itself: Gen 1 to 4 housings have a visible filter canister bolted to the side, while Gen 5 housings are smoother, with no separate canister protruding from the pump body.
- Check the pump shape and connector, since Gen 5 pumps sit lower and more compact than the bulkier earlier designs.
ECS Tuning flags 2012 as the main transition point where Gen 4 and Gen 5 units can appear across very similar model years, so a VIN check matters most for cars built around that window. Some OEM variations across brands can also deviate slightly from the typical pattern, which is another reason to confirm before buying a service kit.
Step-by-step Gen 5 maintenance without a filter to replace
Servicing Gen 5 follows a set order, and skipping steps, especially the final one, is the most common way DIYers end up with a fault light after doing everything else correctly.
- Drain the existing Haldex fluid fully through the drain plug, following the same careful approach covered in HaldexParts’ drain plug removal guide.
- Remove the precharge pump to access the internal screen, taking care with the retaining screws.

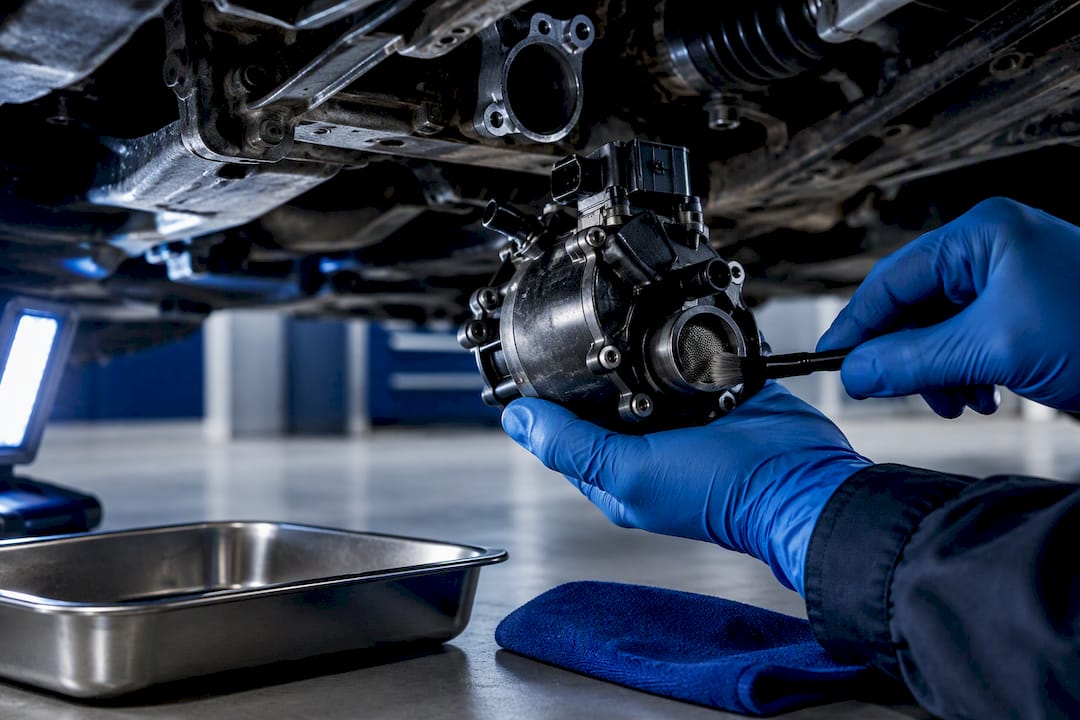

- Remove and clean the pump screen, checking for waxy deposits or clutch material caught in the mesh.
- Flush the pump housing repeatedly until the fluid running out comes back clear.
- Reinstall the pump and torque it to the correct specification.
- Refill with the correct Haldex oil grade for your generation.
- Perform an electronic pump relearn using a diagnostic tool before driving normally.
You will need a Haldex fill pump, the correct oil grade for your unit, a suitable cleaner for the housing, a torque wrench, and low pressure compressed air for clearing residue from the screen. HaldexParts’ own Gen 5 walkthrough covers the same sequence in more visual detail for anyone doing this for the first time.
Pro Tip: Removing the precharge pump lets air into the hydraulic circuit, so the relearn step with a tool such as VCDS is not optional. Skip it and the system can behave as if it is faulty even with fresh fluid and a clean screen fitted.
Symptoms and risks when the screen and fluid get neglected
Left too long between services, Gen 5 units develop the same underlying problem that earlier generations had a filter to catch: contaminated fluid circulating through a hydraulic system that depends on clean oil to build pressure correctly.
- A whining or straining noise from the pump area, often the first sign something is wrong.
- AWD warning lights or fault codes logged by the ECU.
- Noticeably reduced traction or delayed engagement, particularly in slippery conditions.
Liqui Moly’s technical information on the Haldex clutch explains that waxy deposits and clutch debris are a primary cause of precharge pump failure, which is exactly the material a clean screen and a proper flush are designed to remove. Left unaddressed, that debris clogs the screen, starves the pump, and turns a straightforward fluid service into a pump replacement.
Hands-on tips and common pitfalls from HaldexParts
Handling the pump screen correctly is the part most DIYers get wrong. The retaining screws are small and easy to strip, and a dropped or bent screen usually means ordering a replacement pump assembly rather than a simple part.
- Use a well fitted screwdriver on the screen screws rather than forcing an ill fitting bit, since stripped heads are the most common failure point in a home service.
- For 5th generation pumps, replacement nose tips solve the specific problem of a worn or damaged pump nose without needing a full pump swap.
- Keep parts matched to generation, since a Gen 4 filter kit will not fit a Gen 5 housing and vice versa.
- If you do not own a diagnostic tool such as VCDS, arrange access to one before starting, since the relearn cannot be skipped once the pump is disturbed.
A note from someone who answers these questions daily
Most queries we see start the same way: someone convinced there is a missing Gen 5 filter part they simply cannot find. Once they understand it is a screen, not a filter, the service itself is usually quick, and the fault lights clear after a proper relearn.
— Mindaugas
Where to get the parts and tools for the job
Sourcing the right part for the right generation is the practical hurdle once the myth is cleared up. HaldexParts stocks parts matched by generation rather than a one-size list, which avoids the mismatch that causes a lot of failed DIY jobs.
- For Gen 5 pumps with a worn nose, the AWD pump nose replacement tip set fits Audi, VW, BMW, Volvo, Jaguar and other applications sharing the same pump design.
- Gen 4 owners still working with a genuine filter setup can use the G055175A2 oil and Haldex filter 2003085 kit, built specifically for that generation’s canister design.
- Earlier cars running 1st or 2nd generation pumps have their own nose replacement tips, distinct from the Gen 5 set.
For cleaning the housing itself without damaging surrounding components, safe engine bay cleaning steps are worth following before you get near seals or connectors. Browse the full range of Haldex pumps, oils, filters and service kits to match parts to your own generation, whether you are servicing one car at home or fitting out a workshop bay.
Sources
The identification and service claims in this article draw on two main sources. ECS Tuning’s Haldex guide covers generation identification, VIN based checks around the 2012 transition, and confirms there is no OE Gen 5 replacement filter. Liqui Moly’s technical information on the Haldex clutch supports the cleaning and flushing procedure, and explains how waxy deposits and clutch debris lead to precharge pump failure if left unaddressed. Both are referenced for the practical steps and warnings covered above, rather than for generic background.
- How to identify and service your VW or Audi Haldex AWD system – ECS Tuning
- Technical information: Haldex clutch (Liqui Moly)
FAQ
Does Gen 5 Haldex have a filter?
No, Gen 5 units do not use a conventional replaceable oil filter. They rely instead on a small pump screen that can be removed and cleaned during a fluid service, as confirmed by ECS Tuning’s identification guide.
How can you tell if your Haldex pump is failing?
Common warning signs include a whining noise from the pump area, AWD warning lights or logged fault codes, and reduced or delayed traction engagement, particularly in wet or slippery conditions. These symptoms often trace back to sludge or debris restricting the pump screen, as described in Liqui Moly’s technical brief.
How often should Haldex fluid and the screen be serviced?
Intervals vary by generation and by how dealers describe “lifetime” fluid claims, which do not hold up under real driving conditions. HaldexParts’ generation-by-generation interval guide sets out the differences and clarifies what dealer claims actually mean in practice.
Which cars use Gen 5 Haldex?
Gen 5 units began appearing from around 2012 across several Audi, VW group and other AWD models, though exact fitment varies by market and trim. A VIN based compatibility check is the most reliable way to confirm which generation is fitted to a specific car, since model year alone can be misleading around that transition period.
