The Haldex pump sits bolted to the Haldex coupling housing at the rear axle, wired to the Haldex control unit and drawing power once the engine climbs past idle. On fourth and fifth-generation systems you can often reach it by dropping a small cover and undoing a few Allen bolts. Earlier Gen 1 and Gen 2 units usually demand propshaft or partial exhaust removal. Disconnect the battery, mark the propshaft splines, and set aside one to four hours depending on your access route.
TL;DR:
- The pump is mounted directly on the coupling housing and is easiest to access on Generation 4 and 5 models, often requiring only removal of the filter cover.
- For Gen 1 and 2 systems, access usually involves unbolting the propshaft and sometimes partially removing the exhaust, extending repair time to three hours or more.
- Using OEM-grade parts, including the correct generation-specific pump, flange nut, and seals, is essential to avoid reoccurring issues or fitting errors.
- Confirming your vehicle’s generation and part number before ordering parts saves time, as incompatible pumps cause repair failures and increased costs.
Table of Contents
- Where is the pump found across the Haldex generations?
- What tools and access route do you actually need?
- How do you remove and replace the Haldex pump step by step?
- How do you refill, bleed, and test the new pump?
- Why OEM-grade parts matter more than people think
- Where to buy the right Haldex pump for your car
- Sources
- FAQ
Where is the pump found across the Haldex generations?

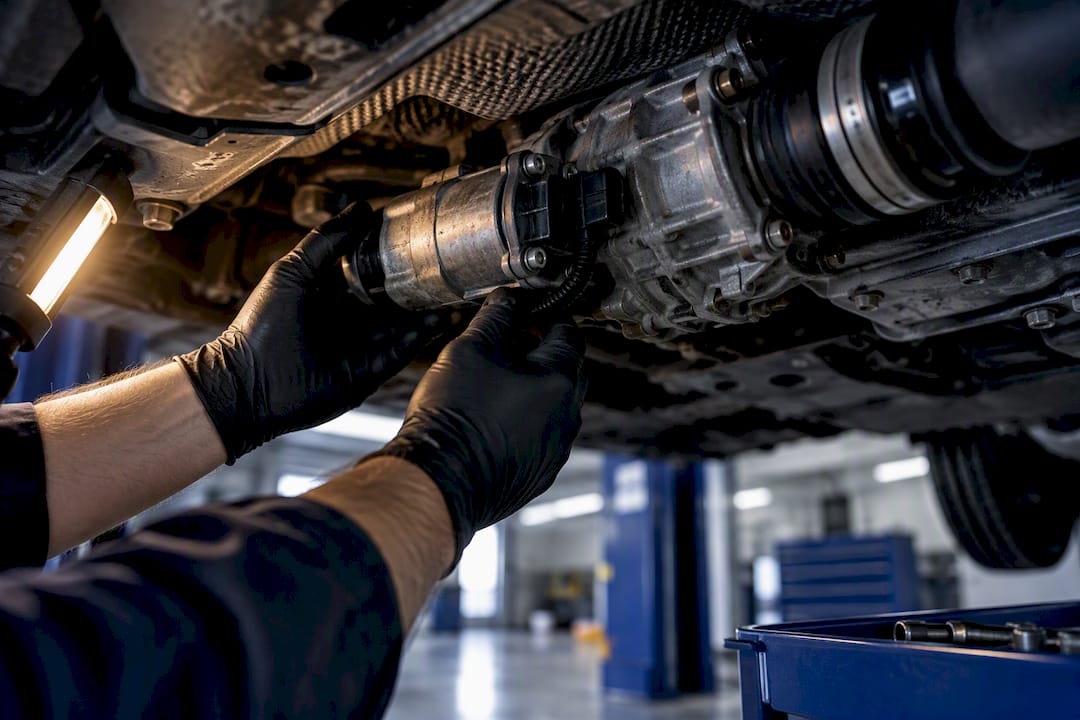

The pump bolts directly onto the coupling housing, and the tell-tale signs are easy to spot once you’re underneath: a filter cover, an electrical pigtail running to the control unit, and a flange nut holding the drive coupling together. The Self-Study Programme 206 confirms this mounting arrangement and notes that the control unit only feeds voltage to the pump once the engine is running above idle, which is why a stationary bench test rarely tells you anything useful.
Forum technicians working on Volvo rear-axle units report that the pump often sits directly behind or beside the filter cover when you look at the unit from the front, which means a torch and a mirror will usually confirm the layout before you touch a spanner.
Access difficulty tracks generation closely:
- Gen 1 and Gen 2 (early Haldex, common on late-1990s and early-2000s Audi/VW quattro and 4motion cars): pump access typically requires unbolting the propshaft, and some jobs also need partial exhaust removal to create enough clearance.
- Gen 3: a mixed bag. Some platforms allow underbody access; others still fight you for space around the propshaft flange.
- Gen 4 and Gen 5 (most VW Group MQB-based cars, later Volvo AWD models, some Land Rover and Range Rover variants): comparatively straightforward, usually needing just the filter or pump cover removed.
Before you commit to a workflow, check your VIN or the vehicle’s service manual to confirm exactly which generation you’re dealing with. Guessing costs you time you don’t get back once the propshaft bolts are already loose.
What tools and access route do you actually need?
Get your tools together before the car goes on stands, not halfway through the job when you’re covered in grease and short a socket. You’ll want:
- A trolley jack and axle stands, or a ramp
- A torque wrench rated for both low and mid-range Nm settings
- A 24 mm socket for the flange nut
- A set of Allen keys for the pump cover bolts
- Penetrating oil for anything that’s been sitting under road salt for a decade
- Electrical connector release tools (small flat picks work fine)
- A scan tool such as VCDS if you want to verify pump activation afterwards
Disconnect the battery before you start, and mark the propshaft-to-flange orientation with paint or a scribe if you’re removing it. If the propshaft is coming out, support the gearbox end so nothing sags while it’s disconnected.
From here you’re choosing between two workflows. The simple underbody service, common on Gen 4 and Gen 5 cars, means dropping a heat shield or filter cover and getting straight to the pump bolts, typically an hour to ninety minutes. The deep access route, more common on Gen 1 and Gen 2 platforms, means dropping the propshaft and sometimes a section of exhaust first, which pushes the job to two or three hours even before you touch the pump itself.
Pro Tip: Soak the flange nut and pump cover bolts in penetrating oil at least twenty minutes before you attempt to turn them. Rear axle fasteners live in a permanently damp, salted environment, and rushing a corroded flange nut is the fastest way to round it off or snap a stud.
How do you remove and replace the Haldex pump step by step?
Confirm your part number and generation before you order anything. Get the replacement pump, a new flange nut if your car uses one, a fresh filter, and the correct Haldex fluid, then check your service manual for the exact torque figures for your model.
Removal:
- Lift the car and support it securely on axle stands.
- Remove the heat shield and, if fitted, the pump or filter cover.
- Drain a small amount of fluid to reduce spillage when the pump comes out.
- Unplug the electrical connector at the pump, and disconnect the pigtail from the control unit if needed.
- Undo the Allen bolts or flange nut, depending on generation, and withdraw the pump. Some Gen 4 units need a slight twist to break the pump free of its seal once the bolts are out.
If the pump is only clogged rather than failed, some owners clean the screen instead of replacing the whole unit, though this is a temporary fix rather than a proper repair.
Fitment:
- Fit the new pump into the housing, seating it fully.
- Use a new flange nut where your model calls for one. Community Volvo guides are consistent on this: don’t reuse the old flange nut, because the locking compound is a one-time fixture.
- Torque everything to the manufacturer’s spec, not by feel.
- Reconnect the pigtail and control unit wiring.
- Refit the filter cover and heat shield.
Generation matters here too. Gen 1 and Gen 2 jobs typically mean reinstalling the propshaft with its orientation marks lined up exactly as you found them, since an out-of-phase propshaft causes vibration. Gen 4 and Gen 5 jobs are usually a straightforward handful of Allen bolts, no realignment needed. Whatever generation you’re working on, double check every torque figure before you drop the car off the stands, and never overtighten the electrical connectors, they’re plastic clips, not fasteners that benefit from muscle.
How do you refill, bleed, and test the new pump?
Locate the fill and drain plugs on the coupling housing and top up slowly, either with a syringe and hose or a careful slow pour, checking your service manual for the exact volume your model needs rather than guessing. Community guides for some Volvo models mention a typical fluid volume as a working example, but treat that as a starting point, not a universal figure.
For bleeding and verification:
- Run a scan tool output test to command the pump directly and watch the readout.
- On Generation IV systems the pump runs until pressure reaches roughly 30 bar, and VCDS or an equivalent tool will show you pump current and pump percentage so you know it’s actually working.
- No scan tool? Some Gen 4 units support a manual screw method to run the pump for a basic bleed check.
- Start the engine and listen for the pump activating.
- Finish with a short, controlled road test to confirm AWD engagement feels normal.
Recheck for leaks and re-torque connections after the first few miles. If anything looks stuck, seized, or the pressure readings don’t stabilise, that’s your cue to bring in a professional rather than force it.
Why OEM-grade parts matter more than people think
Most Haldex pump failures don’t announce themselves cleanly. You get a warning light, a vague loss of traction on wet roundabouts, or nothing at all until the AWD system simply stops helping you. That ambiguity is exactly why fitting the wrong-generation pump, or one missing its flange nut and seals, causes more comebacks than the original fault ever did.
Specialising in OEM-grade pumps, oils, and filters matched to specific generations and vehicles matters because a Gen 4 pump physically will not do the job of a Gen 1 unit. Before you buy, verify your generation and exact part number, check that the flange nut and seals are included where your car needs them, and consider a full service kit if you’re already this deep into the job.
Professional help earns its keep when access is genuinely difficult, when you suspect an internal ECU fault rather than a worn pump, or when corrosion has seized the flange nut solid. Forcing a seized fastener risks damaging the coupling housing itself, which turns a pump job into a much bigger bill.
— Mindaugas
Where to buy the right Haldex pump for your car
Ordering the correct pump before you start, rather than mid-job, is what actually gets most DIY replacements finished in a single afternoon. Haldexparts’s own guide on ordering parts first and finishing the job in three to four hours reflects exactly that logic.
If you’re working on a fifth-generation system, the Haldex Oil pump 5 generation 0D4906271A Audi R8 covers that specific fitment, while Porsche owners on the equivalent generation need the Haldex Oil pump 5 generation 9P1906271. Anyone tackling an older platform should look at the AWD Pump Nose Replacement Tips for 1st and 2nd Generation Haldex Pumps, which addresses the deeper access work those earlier systems demand.
Before you check out, confirm your generation and part number against your VIN, check whether the flange nut and seals are bundled in, and consider a full service kit if your filter and fluid are also due. Browse the complete range of pumps, oils, and filters to find the exact match for your vehicle and get the job sorted in one sitting.
Sources
- Self-Study Programme 206 Four-Wheel Drive with Haldex Coupling
- VW Haldex 4Motion Generation IV - Automotive Tech Info
- How to service Haldex generation 1
FAQ
How do I know if my Haldex pump is bad?
Common signs include a dashboard AWD or traction warning light, reduced traction pulling away on wet or loose surfaces, or a pump that stays silent when you’d expect to hear it activate at start-up. A scan-tool check showing abnormal pump current or percentage is the most reliable confirmation before you start removing parts.
How much does it cost to replace a Haldex pump?
Costs vary by vehicle generation, part sourcing, and whether you fit it yourself or pay a workshop for propshaft removal on older systems. Current pricing for pumps, oils, and filters is listed on the Haldexparts site, since generation and vehicle fitment both affect the exact part needed.
How do I change a Haldex pump?
Lift the car, disconnect the battery, and remove whichever shields or propshaft sections your generation requires to reach the coupling housing. Unplug the pump, remove its Allen bolts or flange nut, fit the replacement with a new flange nut where applicable, torque everything to spec, then refill and verify with a scan-tool output test or a road test.
What are the common Haldex problems?
The most frequent faults are a worn or seized pump, a blocked filter restricting fluid flow, and pressure sensor faults that mimic pump failure on a scan tool. Corrosion around the flange nut and propshaft bolts on older Gen 1 and Gen 2 systems is also a recurring headache during removal, even when the pump itself is fine.
