A corroded Haldex connector is one of the cheapest faults to fix and one of the easiest to misdiagnose. Water and road salt get into the pump plug (or, on Volvos, into the Differential Electronic Module, the DEM), the contacts build up resistance, and the all-wheel-drive system starts throwing warnings that look like a dead pump. Inspect the connector first, clean or replace what is damaged, seal it properly, and only then condemn expensive parts.
TL;DR
- Corrosion raises contact resistance, so the Haldex pump or DEM gets weak or intermittent power and signals. That can look like a failed pump, sensor or control unit.
- Read the fault codes and check the connector and wiring before buying parts. Green or white deposits, damp pins and a loose latch are the giveaways.
- Light surface corrosion on pins can be cleaned. Pitted terminals, a corroded circuit board or a water-filled housing need repair or replacement.
- If water has reached the pump or oil, service the unit: new filter, fresh oil and seals, not just a cleaner and a squirt of grease.
- Prevention is dull but effective: wash the underside after salted roads, seal the connector correctly and recheck it at every Haldex service.
Table of Contents
- Why Haldex connectors and the Volvo DEM corrode
- Symptoms of a corroded connector
- How to inspect and diagnose it
- Clean, repair or replace?
- Our perspective
- Stopping corrosion from coming back
- Order the right parts for the job
- FAQ
- Sources
Why Haldex connectors and the Volvo DEM corrode
The Haldex pump and its control electronics sit low on the rear axle. They live in spray, grit and, in the northern and Rust Belt states, months of road salt. Any connector there is a weak point, and the Volvo DEM, which is bolted under the vehicle, is exposed in the same way. Owners on a Volvo forum point to water ingress as a possible DEM problem for exactly this reason: the module is exposed to the elements under the car.
The mechanism is the same on any automotive plug. Moisture and salt get past an ageing seal or a latch that is not fully home. Plated terminals corrode, contact resistance climbs, and the heat from that resistance speeds up the damage. One manufacturer’s write-up of a failing trailer-light circuit describes road salt corroding tin-plated terminals until the lights failed intermittently and then permanently. A Haldex plug follows the same path, except the symptom is an AWD warning instead of a dark tail light.
Three things make it worse on these systems:
- Disturbed seals. Any time the pump has been removed, a pinched or reused connector seal lets water in.
- Wrong or missing sealing. Some owners pack the plug with grease and call it done, which traps moisture inside if the seal itself is damaged.
- Leaking pump or housing. Water inside the unit is a different problem to water in the plug. Our guide to Haldex water contamination explains when parts need replacing.
Symptoms of a corroded connector
There is no single warning that says “corroded connector”. What you see depends on how much resistance the corrosion adds and whether moisture comes and goes.
- An AWD, traction or ESP warning that appears after rain, a car wash or a cold morning and then clears.
- Warnings that return after you clear the codes, with no change in how the car drives.
- Loss of rear-axle drive, with the car behaving as front-wheel drive only.
- Fault codes pointing at the pump, the pressure sensor, the control valve or lost communication, while the part itself tests fine.
- On Volvos, a service message and no communication with the DEM.
The intermittent pattern is the clue. A failed pump stays failed. A damp or corroded contact comes and goes with weather, vibration and temperature. Forum owners have described the same thing on other platforms: one Audi owner’s ESP light went away after a corroded board connection was cleaned and soldered.
For the codes themselves, see our Haldex fault codes guide with blink chart. Use it to see which area a code points to, then treat the code as a lead, not a verdict.
How to inspect and diagnose it
The order matters. Do the free checks first.
1. Read the codes
On VW Group cars use a scan tool that reaches the Haldex module. On Volvos, a technician guide recommends using VIDA to read the fault codes and test the AOC pressure and temperature sensor function. Save the codes and freeze-frame data before clearing anything. Our overview of how Haldex diagnoses faults and the list of Haldex diagnostic tools cover what each tool can and cannot see.

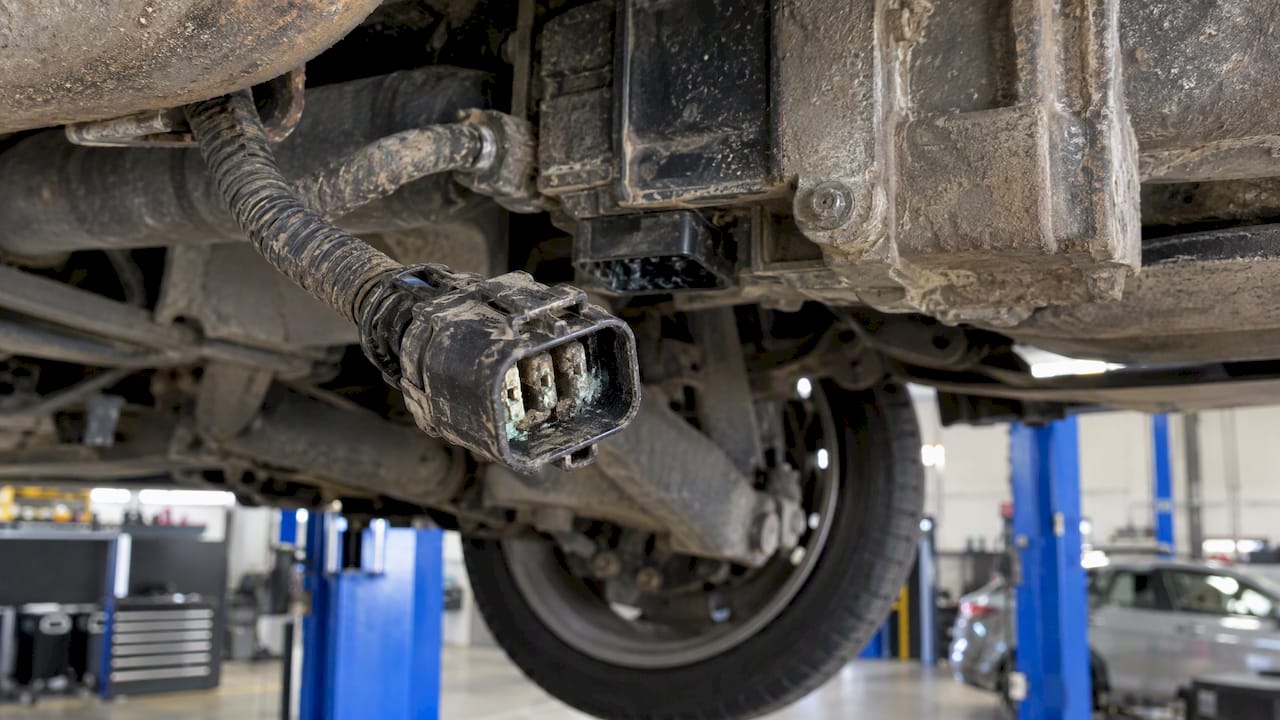

2. Look at the connector
Disconnect the battery, then release the plug. On a Golf-type pump, owners describe unhooking the electrical connector and removing two small bolts that hold the pump; the plug itself comes off with a latch you release, not by pulling on the wires. Check for:
- green, white or blue-green deposits on pins or inside the socket;
- damp, rusty or darkened terminals;
- a cracked latch or a seal that is flattened, split or missing;
- wires that are brittle, swollen or green under the insulation near the plug (corrosion can wick up the strands);
- water or oily residue inside the cavity.
3. Wiggle and measure
With the plug reseated and the system powered, gently flex the harness while watching live data or the warning light. If the symptom appears or disappears, you have found the area. A multimeter voltage-drop test across the supply and ground circuits under load is more reliable than a plain continuity check, because corroded contacts often pass a no-load test and fail when current flows.
4. Test the part before blaming it
If the plug is clean and the codes persist, move on to the components. We have step-by-step guides to testing a Haldex pump and to the pressure sensor fault test with the OEM 0.38 MPa figure. The pressure sensor function guide helps you read what the sensor should be doing.
Clean, repair or replace?
This is the question most people searching this topic want answered. A fair rule: clean what is superficial, replace what is eaten away.
| Condition | Sensible action |
|---|---|
| Light film or dull deposits on pins, seal intact | Clean, dry, reseat, seal |
| Green or white crust, pins still firm and shiny underneath | Clean carefully, check pin tension, re-test under load |
| Pitted, thinned or loose terminals | Replace the terminals or the pigtail connector |
| Corrosion creeping up the wire | Cut back to clean copper, repair with sealed (adhesive-lined) splices |
| Corroded circuit board inside a DEM or controller | Specialist repair or replacement of the module |
| Water inside the pump or in the oil | Service the unit: filter, oil, seals, and replace damaged parts |
Cleaning a plug safely
- Disconnect the battery and let the car sit if it was just washed.
- Spray the pins and socket with an electrical contact cleaner that is safe for plastics, and let it flush out debris and water.
- Remove stubborn deposits with a soft nylon or interdental-type brush. Avoid sandpaper and files, which strip the plating and leave bare metal that corrodes faster.
- Dry the plug completely. Compressed air or an hour in a warm room is enough. Never use heat guns near the latch.
- Check that each socket still grips its pin. A terminal that has opened up will cause the same fault again.
- Fit a new connector seal if the old one is damaged, then seat the plug until the latch clicks.
Once the connection is dry and tight, dielectric grease is commonly used to keep moisture out of automotive connectors. Use a thin film on the seal and housing interface, not a thick packing on the pins, and never rely on it to cover a split seal.
What about the board inside the DEM?
Owners do report fixes at board level. One Tiguan owner described cleaning a corroded controller board with contact cleaner and soldering a corroded connection, and a Volvo forum poster said a diagnostic specialist would overhaul a DEM. Those are individual reports, not a guarantee. If the board is corroded, a repair is only worth it when it is done by someone who can seal the housing afterwards. Otherwise the same water gets in again. For a workshop customer, a reconditioned or replacement module with a proven seal is often the safer call.
When the connector is a symptom, not the cause
If you find water in the plug, ask where it came from. A leaking pump seal, a damaged housing or a failed breather can soak the connector from the inside. Check the pump and the oil on the dipstick or drain: milky, grey or watery oil means the problem has gone beyond the plug. Our guide on what causes Haldex failure lists the other usual culprits, and the solenoid valve replacement guide covers the valve if codes point there.
Our perspective
We sell Haldex service parts every day, and the pattern we see is consistent: a car arrives with an AWD warning, the owner or shop has already fitted a pump or a sensor, and the fault is still there. Very often nobody looked at the connector. A connector costs very little compared with a pump, so it is where the diagnosis should start.
Our advice is to treat the electrical plug and the hydraulic service as one job. If the pump has been out, the seals are disturbed and the filter and oil are due anyway, so do them together. Fit a fresh seal kit rather than reusing old rubber, use the correct oil for the generation, and replace the filter. On Volvos with the AOC system the filter and fluid are a regular service item, and the car’s own Volvo XC90 service checklist shows the parts we would order. We would rather you spend an hour with a brush and a multimeter than buy a part you did not need.
— Mindaugas
Stopping corrosion from coming back
Cleaning without prevention is borrowed time. These habits make the biggest difference.
- Wash the underside. Volvo’s own service guidance recommends washing the vehicle, including the undercarriage, to reduce dirt buildup and salt corrosion. In salted states, rinse after every storm, not just in spring.
- Avoid blasting the plug. A pressure washer aimed straight at a connector can force water past the seal. Keep the lance back and angle it away.
- Replace seals whenever you open it. Never refit a flattened or cracked seal.
- Route the harness correctly. Check that the wiring forms a drip loop so water runs off the plug, not into it, and that nothing rubs on the subframe.
- Check at every service. Open the plug at each Haldex service and look for early green traces.
- Use the right underbody and wiring protection. The same principles apply to trailer and truck plugs, and fleet techs will find useful detail in this walkthrough of preventing trailer plug corrosion, which covers reducing underbody dirt and salt buildup.
Fleet managers should log this. A plug check added to the routine inspection costs minutes per vehicle and catches problems before a van sits on the side of the road with the AWD light on.
Order the right parts for the job
If the inspection shows water in the system or the pump has been disturbed, a service is the sensible fix. We stock OEM-grade Haldex pumps, oils, filters, ECUs, control units and service kits, selectable by brand and by Haldex generation, so you can match the part to the car. Orders over £150 ship free, and we handle bulk and B2B orders for workshops and fleets.
Starting points:
- The 4th generation Haldex repair seal kit for Volvo, Land Rover, Ford, VW and Audi, for when seals have been disturbed.
- Genuine Volvo AOC Haldex transmission oil for a fluid change.
- The BorgWarner AOC filter with 850 ml oil for Volvo AWD (2011 to 2014).
- Everything else, including ECUs and control units, on our Haldex parts shop.
FAQ
Can I drive with a corroded Haldex connector?
Often you can, but the car may drive as front-wheel drive only and the warning light will stay on or flicker. Poor contact can also stress the pump and the module, so do not leave it for months. Have it inspected soon, especially before winter or towing.
Is a Haldex fault code always a failed pump?
No. A code for the pump, valve or pressure sensor can come from a bad connection as well as a bad part. Check the connector, ground and supply with a voltage-drop test under load before buying the pump. If the plug is clean and dry, test the pump itself.
Can I use WD-40 or sandpaper to clean the pins?
We would not. Use a contact cleaner made for electrical parts and a soft brush. Sanding removes the plating, and a general lubricant can leave a film that attracts dirt. Finish with a thin layer of dielectric grease on the seal area only if the seal is in good condition.
How do I know if the DEM on my Volvo is corroded?
A Volvo with a DEM fault typically shows an AWD service message, and a scan with VIDA may show no communication or internal faults. A visible white or green crust on the housing or plug supports the diagnosis, but confirmation needs a proper scan and inspection. Compare that with the plug, fuse and pump before replacing the module.
